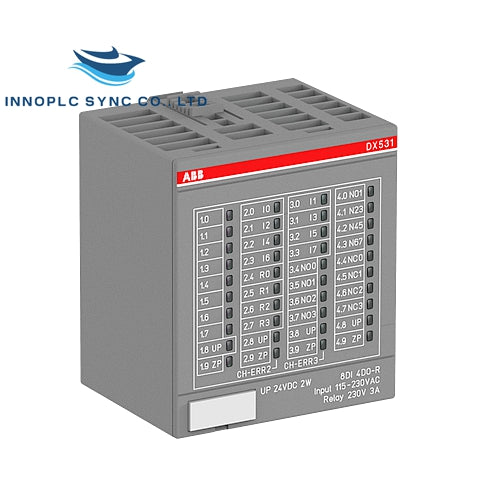

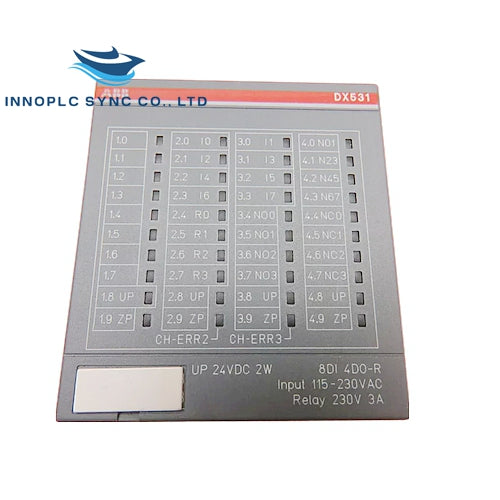

ABB | DX531 | Digital Input/Output Module

SKU: DX531

Manufacturer: ABB
Product No.: DX531
Condition：In stock
Product Type: Digital Input/Output Module
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Ordering Data

Part Number: 1SAP 245 000 R0001
Description: DX531, digital input/output module, 8 DI, 230 VAC, 4 DO relays, 2-wires
Product Life Cycle Phase: Active

Technical Data

Process Supply Voltage: UP
Connections:
- Terminals 1.8, 2.8, 3.8, and 4.8 for +24 VDC (UP)
- Terminals 1.9, 2.9, 3.9, and 4.9 for 0 VDC (ZP)
Rated Value: 24 VDC
Max Ripple: 5 %
Protection Against Reversed Voltage: Yes
Rated Protection Fuse on UP: 10 A fast
Galvanic Isolation: Yes, per module

Current Consumption:
- From 24 VDC at terminals UP/L+ and ZP/M of CPU/bus module: Approx. 2 mA
- From UP at normal operation with outputs: 0.15 A + output loads
Inrush Current (Power-Up): 0.004 A²s
Max Power Dissipation (Outputs OFF): 6 W
Weight (without terminal unit): Approx. 300 g
Mounting Position: Horizontal or vertical (output load reduced to 50 % at 40 °C per group)
Cooling: Natural convection

Digital Inputs

Number of Channels: 8
Channel Grouping: 4 groups of 2 channels each
Channel Terminals: I0 to I7
Galvanic Isolation: 2500 VAC from the rest of the module (I/O bus)
Indication of Input Signals: 1 yellow LED per channel (operates only when module is initialized)
Input Type (EN 61131-2): Type 2
Input Delay: Typ. 20 ms
Input Signal Voltage: 230 VAC or 120 VAC
Input Signal Range: 0 VAC to 265 VAC
Signal Frequency: 47 Hz to 63 Hz
Input Characteristic: EN 61132-2 Type 2
Signal Ranges:
- Signal 0: 0 VAC to 40 VAC
- Undefined: > 40 VAC to < 74 VAC
- Signal 1: 74 VAC to 265 VAC
Max Cable Length: Shielded 1000 m, Unshielded 600 m

Relay Outputs

Number of Channels: 4 relay outputs
Channel Grouping: 4 groups of 1 channel each
Galvanic Isolation: Yes, between channels and from the rest of the module
Indication of Output Signals: 1 yellow LED per channel (ON when relay coil is energized)
Way of Operation: Non-latching type
Relay Power Supply: By UP process supply voltage
Output Protection: External fuse or circuit breaker required
Rated Protection Fuse: 6 A gL/gG per channel
Output Switching Capacity:
- Resistive Load: 3 A at 230 VAC / 2 A at 24 VDC
- Inductive Load: 1.5 A at 230 VAC / 1.5 A at 24 VDC
- Lamp Load: 60 W at 230 VAC / 10 W at 24 VDC
Lifetime (Cycles):
- Mechanical: 300,000
- Load: 300,000 (24 VDC at 2 A), 200,000 (120 VAC at 2 A), 100,000 (230 VAC at 3 A)
External Spark Suppression (Inductive AC Loads): Required
Demagnetization (Inductive DC Loads): Free-wheeling diode in parallel
Max Cable Length: Shielded 1000 m, Unshielded 600 m

Mechanical Data

Mounting: Horizontal
Degree of Protection: IP 20
Housing Classification: V-2 (UL 94)
Vibration Resistance (EN 61131-2):
- 2 Hz to 8.4 Hz: continuous 3.5 mm
- 8.4 Hz to 150 Hz: continuous 1 g
Shock Test: All three axes, 15 g, 11 ms, half-sinusoidal
Mounting of Modules:
- DIN rail (EN 50022) - 35 mm, depth 7.5 mm or 15 mm
- Screw Mounting: Screws with diameter 4 mm
- Fastening Torque: 1.2 Nm
