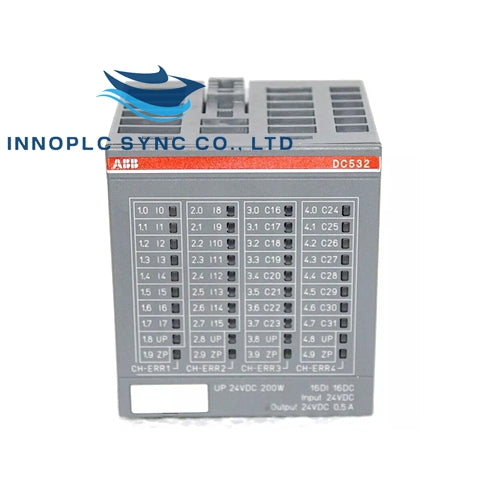

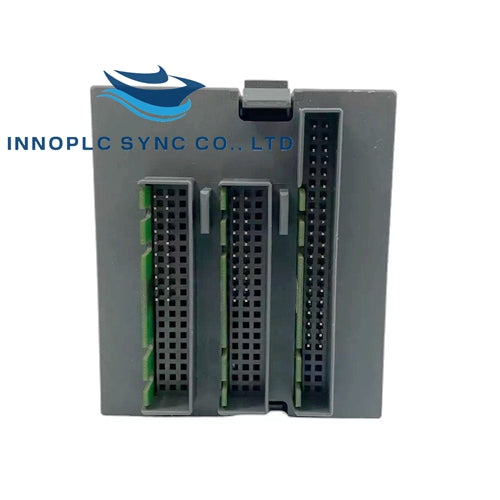

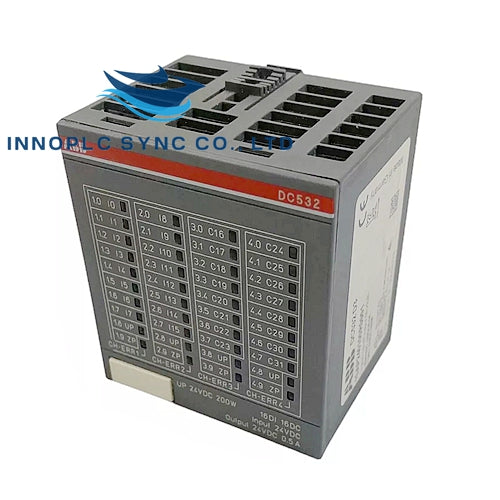

ABB DC532 Digital Input/Output Module

SKU: DC532

Manufacturer: ABB
Product No.: DC532
Condition：In stock
Product Type: Digital Input/Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 125g
Shipping port: Xiamen
Warranty: 12 months

Overview

The DC532 Digital Input/Output Module supports versatile applications by integrating 16 digital inputs and 16 digital outputs. It operates at 24 V DC with a maximum output current of 0.5 A per channel, making it suitable for various automation tasks.

Ordering Data

Part No:
- 1SAP 240 100 R0001
Description:
- DC532, digital input/output module, 16 DI, 16 DC, 24 V DC / 0.5 A, 1-wire
Product Life Cycle Phase:
- Active
Part No:
- 1SAP 440 100 R0001
Description:
- DC532-XC, digital input/output module, 16 DI, 16 DC, 24 V DC / 0.5 A, 1-wire, XC version
Product Life Cycle Phase:
- Active

Technical Specifications

Process Supply Voltage (UP):

Rated Value: 24 V DC

Connections:

Terminals:
- 1.8, 2.8, 3.8, and 4.8 for +24 V
- 1.9, 2.9, 3.9, and 4.9 for 0 V (ZP)
Max. Ripple: 5%

Protection:

Against Reversed Voltage: Yes
Rated Protection Fuse on UP: 10 A fast
Galvanic Isolation: Yes, per module

Current Consumption:

From 24 V DC Power Supply: approx. 2 mA
Normal Operation (with Outputs): 0.15 A + max. 0.5 A per output
Inrush Current: 0.007 A²s
Max. Power Dissipation: 6 W (outputs unloaded)
Weight (without terminal unit): approx. 125 g

Mounting Position:

Horizontal or vertical (derating applies)

Cooling:

Natural convection must not be obstructed.

Digital Input Specifications

Number of Channels per Module: 16
Distribution: 1 group of 16 channels

Input Terminals:

I0 ... I7: 1.0 ... 1.7
I8 ... I15: 2.0 ... 2.7

Reference Potential:

Terminals 1.9, 2.9, 3.9, and 4.9

Galvanic Isolation:

From the rest of the module

Input Signal Indication:

One yellow LED per channel (ON when input signal is high)

Input Type (EN 61131-2):

Type 1

Input Delay (0 -> 1 or 1 -> 0):

Typ. 8 ms, configurable from 0.1 to 32 ms

Input Signal Voltage:

Signal 0: -3 V ... +5 V
Undefined: > +5 V ... < +15 V
Signal 1: +15 V ... +30 V

Input Current per Channel:

Input Voltage +24 V: Typ. 5 mA
Input Voltage +5 V: > 1 mA
Input Voltage +15 V: > 5 mA
Input Voltage +30 V: < 8 mA

Max. Cable Length:

Shielded: 1000 m
Unshielded: 600 m

Configurable Digital Inputs/Outputs

Number of Channels per Module: 16 inputs/outputs
Distribution: 1 group of 16 channels

Indication of Input/Output Signals:

One yellow LED per channel (ON when signal is high)

Galvanic Isolation:

From the rest of the module

If Used as Inputs:

Channels I16 ... I23: Terminals 3.0 ... 3.7
Channels I24 ... I31: Terminals 4.0 ... 4.7

If Used as Outputs:

Channels Q16 ... Q23: Terminals 3.0 ... 3.7
Channels Q24 ... Q31: Terminals 4.0 ... 4.7

Environmental Conditions

Temperature:

Operating: 0 °C ... +60 °C (horizontal), 0 °C ... +40 °C (vertical)
Storage: -40 °C ... +70 °C
Transport: -40 °C ... +70 °C

Humidity:

Max. 95 %, without condensation

Air Pressure:

Operating: > 800 hPa / < 2000 m
Storage: > 660 hPa / < 3500 m

Supply Voltage:

24 V DC (-15 %, +20 %)

Protection Against Reverse Polarity:

AC Wide-Range Supply Voltage:

100 V ... 240 V (-15 %, +10 %)

Frequency:

50/60 Hz (-6 %, +4 %)
