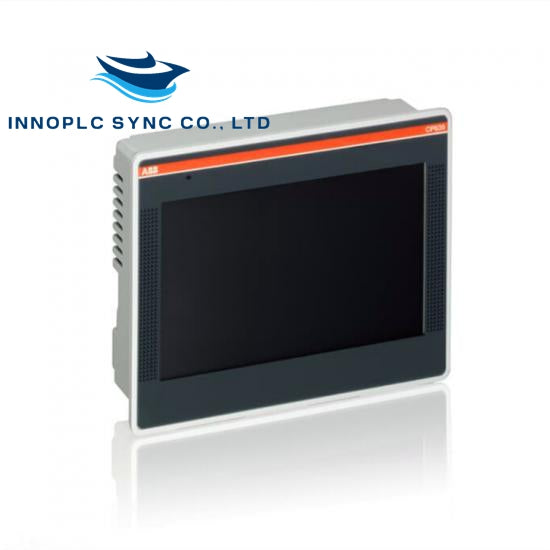

ABB | CP661 | Control Panel12.1 TFT touch screen

SKU: CP661

Manufacturer: ABB
Product No.: CP661
Condition：In stock
Product Type: 12.1 TFT touch screen
Product Origin: USA
Payment:T/T, Western Union
Weight: 190g
Shipping port: Xiamen
Warranty: 12 months

Product Net Weight: 2.65 kg
Gross Weight: 3.031 kg
Product Net Depth / Length: 60 mm
Product Net Height: 267 mm
Product Net Width: 336 mm
Package Level 1 Depth / Length: 420 mm
Package Level 1 Height: 140 mm
Package Level 1 Width: 340 mm
Package Level 1 Units: 1 carton

Technical Specifications

Function: 12.1" TFT touch screen, 64k colors, 800 x 600 pixels
Screen Size: 12.1 in
Screen Color: 64k colors
Screen Resolution: 800 x 600 pixels
Screen Aspect Ratio: 4:3
Screen Type: TFT color, LED backlight, touch screen
Number of Hardware Interfaces:
- Industrial Ethernet: 2x Ethernet 10/100 Mbit
- Serial Port: 1x RS232/422/485
- USB: 2x USB 2.0 Host
- SD Card Slot: 1
- Expansion Slots: 2
Memory Size:
- User Data: 256 MB (Flash Disk)
- User Program: 256 MB (DDR RAM)
Input Voltage Type: DC
Supply Voltage: 24 V DC (18 ... 30 V DC)
Power Consumption (@Pcons): 25 W
Degree of Protection:
- Front: IP66 (acc. to IEC 60529)
- Housing: IP20 (acc. to IEC 60529)
Ambient Air Temperature:
- Operation: 0 ... +50 °C
- Storage: -20 ... +70 °C
Mounting Type: Front face
Service Life: 40,000 hours
Real-Time Clock: Hardware clock with battery backup
Security: Password protection with 8 user levels

Additional Information

Product Name: Control Panels
Product Type: PLC-CP600
Programming Software: PB610 Panel Builder 600
Country of Origin: Italy (IT), Germany (DE), Finland (FI)
Customs Tariff Number: 85371091
GL Certificate: 1SAA960004-0304
Replaced Product ID (OLD): 1SAP560100R0001
Cover Material:
- Front side: Aluminium
- Reverse side: Aluminium
