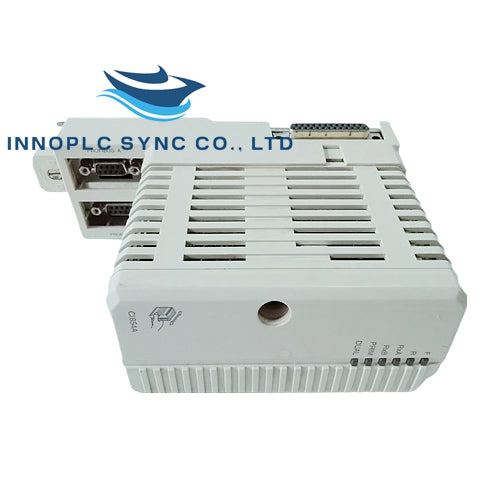

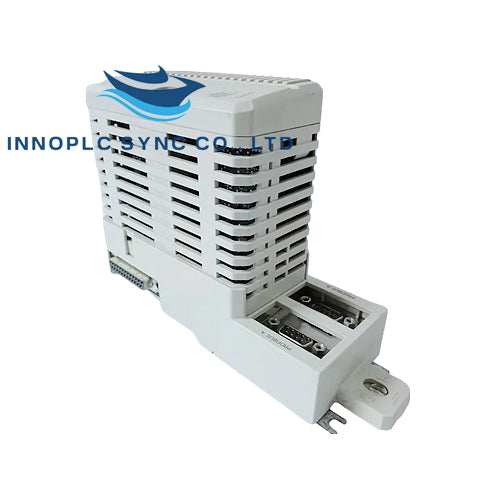

ABB | CI854A | Interface Module

SKU: CI854A

Manufacturer: ABB
Product No.: CI854A
Condition：In stock
Product Type: Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months

Overview

The CI854A Interface Module is designed for connecting remote I/O and fieldbus instruments via PROFIBUS DP. It enables integration with systems such as S800 I/O and other PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus networks. The CI854A can be set redundant and supports master redundancy when paired with another module.

Key Features

High-Speed Communication: Up to 12 Mbit/s via PROFIBUS DP
Redundancy Support:
- Master redundancy using two CI854A modules
- CPU and CEXbus redundancy (with BC810)
Modular Design: Mounts on a DIN rail, interfaces directly with I/O systems
Flexible Connectivity: Supports PROFIBUS PA via LD 800P linking device

Detailed Specifications

Max Units on CEX Bus: 12
Connector: DB female, 9-pin
Power Consumption: 190 mA (typical) at 24 VDC

Environmental & Certification

Operating Temperature: +5 to +55°C (+41 to +131°F)
Storage Temperature: -40 to +70°C (-40 to +158°F)
Humidity: 5 to 95% (non-condensing)
Protection Class: IP20 (EN60529, IEC 529)
Certifications: CE, Marine (BV, DNV-GL, LR, RS, CCS)
RoHS & WEEE Compliance: Yes

Physical Dimensions

Height: 185 mm (7.3 in.)
Width: 59 mm (2.3 in.)
Depth: 127.5 mm (5.0 in.)
Weight: 700 g (1.5 lbs)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
