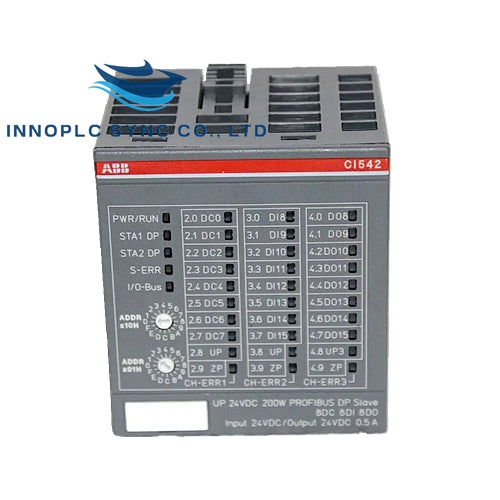

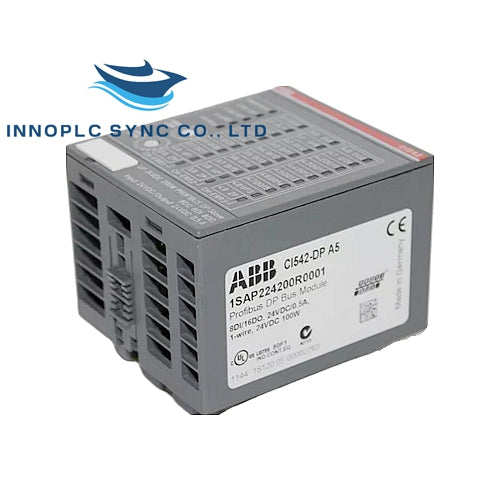

ABB | CI542-DP Profibus Slave Interface Module

SKU: CI542-DP

Manufacturer: ABB
Product No.: CI542-DP
Condition：In stock
Product Type: Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 130g
Shipping port: Xiamen
Warranty: 12 months

General Information

Extended Product Type: CI542-DP
Product ID: 1SAP224200R0001
ABB Type Designation: CI542-DP
Catalog Description: Interface module. PROFIBUS slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A (CI542-DP)
Long Description: S500 Interface module. PROFIBUS slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A. Extendable by up to 10 I/O modules.

Ordering

Invoice Description: Interface module. PROFIBUS slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A (CI542-DP)
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.13 kg
Product Net Depth / Length: 62 mm
Product Net Height: 76 mm
Product Net Width: 67.5 mm

Technical

Function: PROFIBUS slave. 8 DI: 24VDC. 8 DO: 24VDC 0.5A. 8 configurable DI/DO: 24VDC 0.5A
Number of Hardware Interfaces:
- Industrial Ethernet: 0
- Other: 0
- Parallel: 0
- RS-232: 0
- RS-422: 0
- RS-485: 1
- Serial TTY: 0
- USB: 0
- Wireless: 0
Analog Inputs: 0
Analog Outputs: 0
Number of Digital Inputs: 8
Number of Digital Outputs: 8
Number of Digital Configurable I/Os: 8
Input Voltage Type: DC
Input Voltage (Uin): 24 V DC
Input Current: 5 mA
Delay Time (τ): 0.1 … 32 ms
Output: Transistor
Output Voltage Type: DC
Output Current: 0.5 A
Output Voltage Maximum: 20.4 … 28.8 V
Degree of Protection: IP20
Supply Voltage: 20.4 … 28.8 V DC

Additional Information

Product Main Type: CI542
Product Name: Distributed Automation I/Os

Environmental

SCIP: 233d78fe-0930-4291-82c6-6b1e1cc69d44 Germany (DE)
WEEE B2C / B2B: Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
