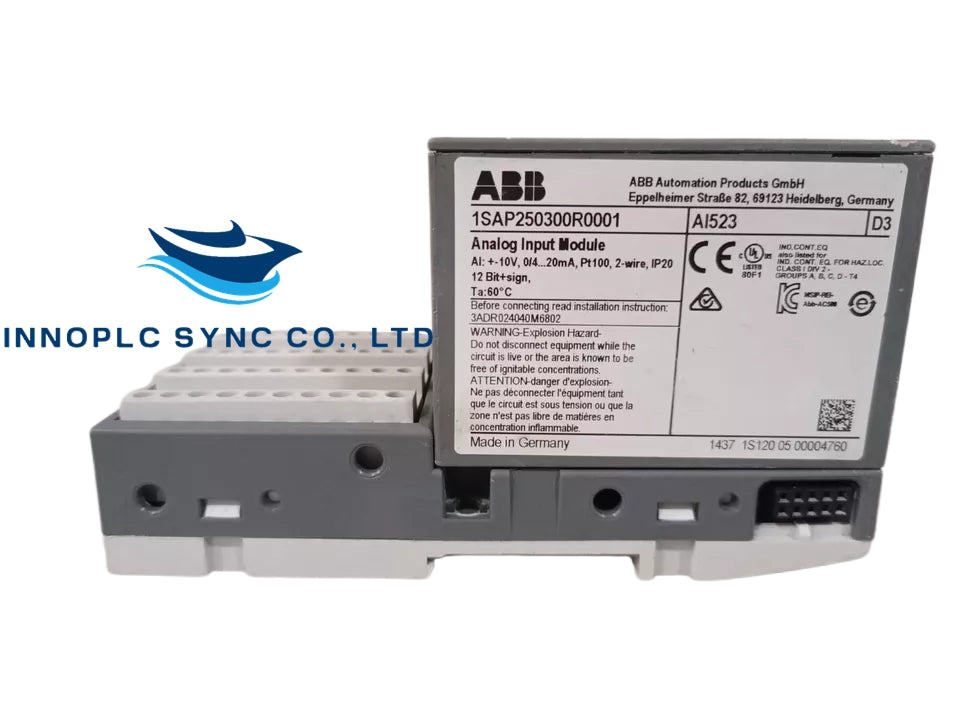

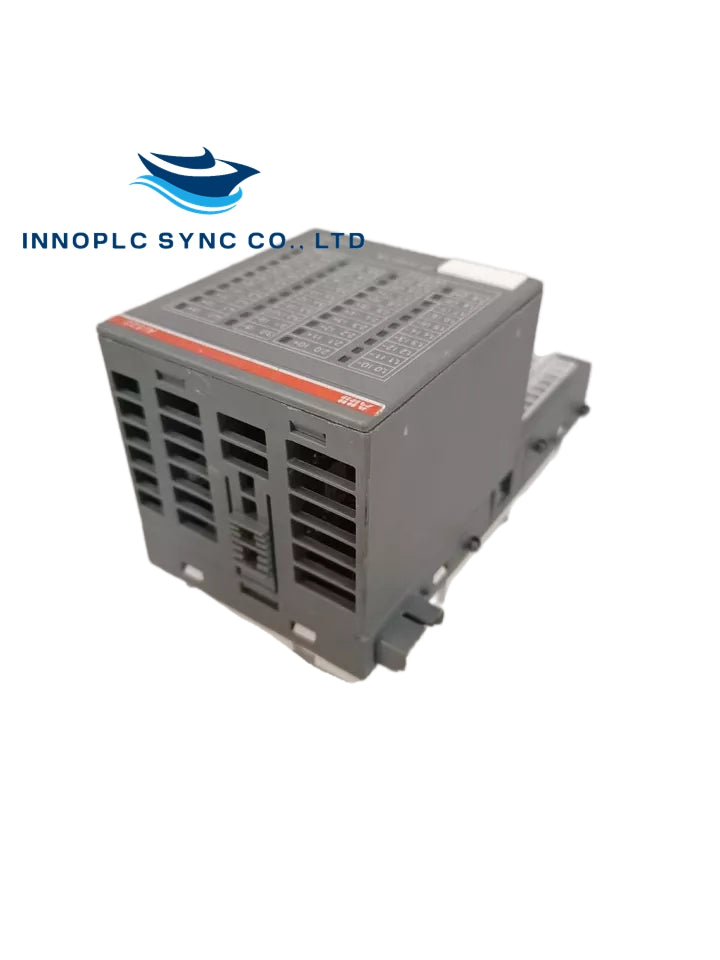

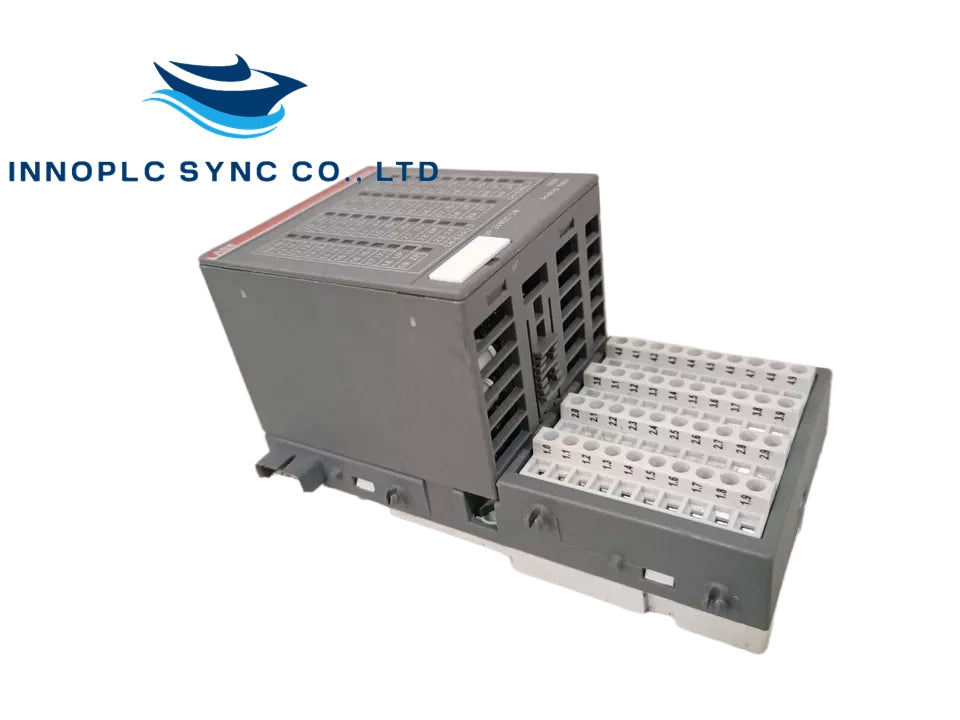

ABB|Analog input module| AI523
SKU: AI523

  • Manufacturer: ABB

  • Product No.: AI523

  • Condition：In stock

  • Product Type: Analog input module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 190g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • Product Net Weight: 0.125 kg
  • Gross Weight: 0.149 kg
  • Product Net Depth / Length: 62 mm
  • Product Net Height: 76 mm
  • Product Net Width: 67.5 mm
  • Package Level 1 Depth / Length: 84 mm
  • Package Level 1 Height: 72 mm
  • Package Level 1 Width: 71 mm
  • Package Level 1 Units: 1 carton

Technical Specifications

  • Function: 16 AI: U, I, RTD, DI
  • Number of Analog Configurable I/Os: 0
  • Analog Inputs: 16
  • Input Signal: U (voltage), I (current), RTD (Resistance Temperature Detector), DI (Digital Input)
  • Resolution: Analog Input 13 bit
  • Degree of Protection: Housing IP20
  • Supply Voltage: 24 V DC
  • Ambient Air Temperature:
    • Operation: 0 ... +60 °C
    • Storage: -40 ... +70 °C

Additional Information

  • Classifications:
    • eClass: 27-24-22-02
    • ETIM 8: EC001420 - PLC analogue I/O-module
    • UNSPSC: 32151705

Environmental

  • SCIP: 7cb90025-28e2-46bb-94d1-6c5d380058b3 (Germany)
  • WEEE B2C / B2B: Business To Business
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

Check now

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
Check now
