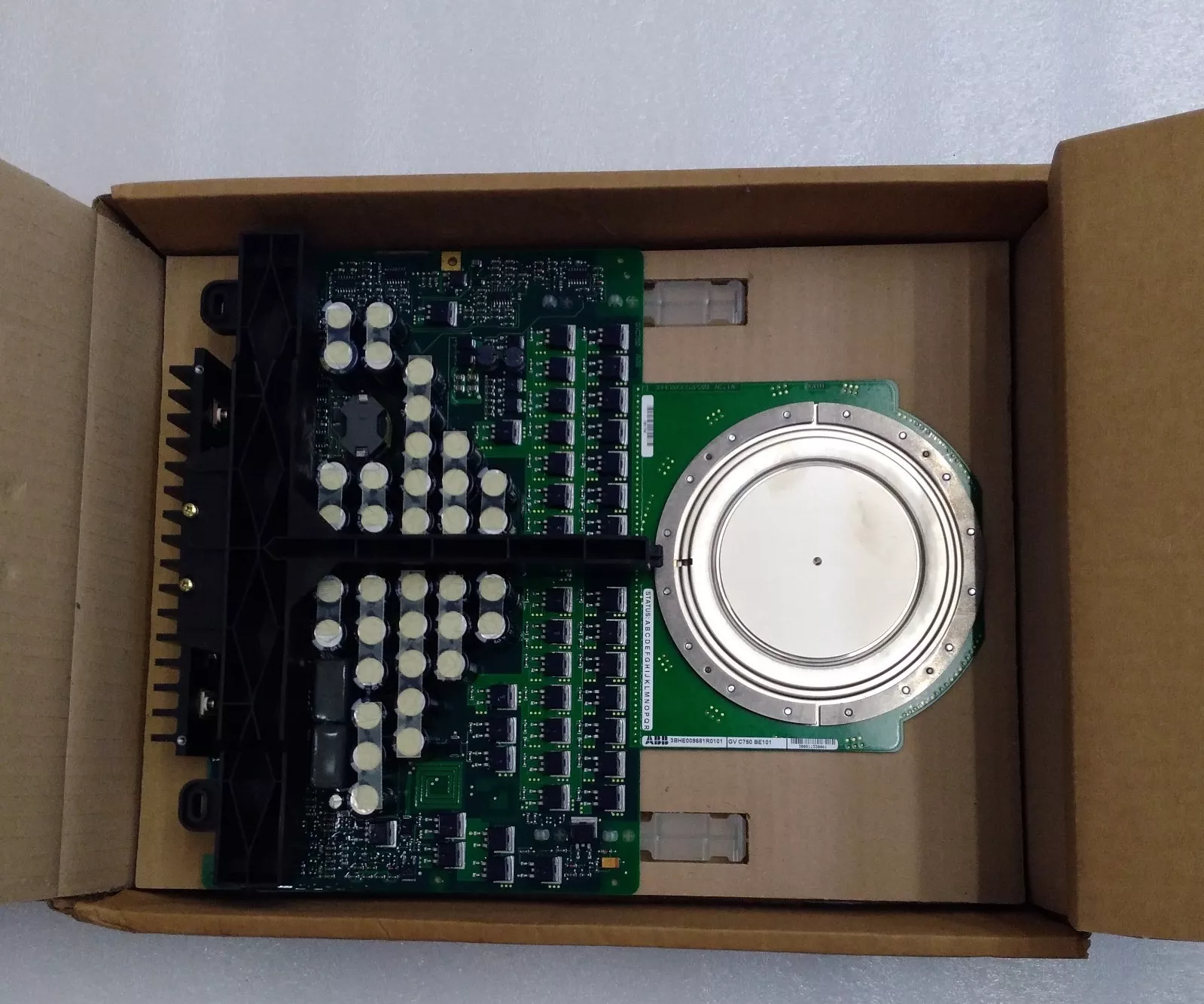

ABB | 5SHY3545L0009 | IGCT Control Panel Module

SKU: 5SHY3545L0009

Manufacturer: ABB
Product No.: 5SHY3545L0009
Condition：In stock
Product Type: IGBT/IGCT Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 780g
Shipping port: Xiamen
Warranty: 12 months

Specification	Details
Description	ABB 5SHY3545L0009 3BHB013085R0001 IGCT Control Panel Module
Manufacture	ABB
Model	5SHY3545L0009
Ordering Information	3BHB013085R0001
Catalog	VFD Spares
Origin	United States (US)
HS Code	85389091
Dimension	16 cm x 16 cm x 12 cm
Weight	0.8 kg

Details

The ABB 5SHY3545L0009 3BHB013085R0001 IGCT Control Panel is designed for controlling and monitoring ABB IGCT (Integrated Gate Transistor). Below are detailed features and specifications:

Features:

IGCT Control: Designed to control and monitor the operation and performance of ABB IGCT modules.
Integrated Design: Simplifies operation and maintenance by integrating all necessary control and monitoring functions.
High Performance: Provides efficient and reliable control solutions for various industrial applications.

Technical Specifications:

Control Function: Offers operational control of IGCT, including switching, regulation, and protection functions.
Monitoring Function: Real-time monitoring of IGCT status, including current, voltage, and temperature, with alarm and diagnostic information.
Interface: User-friendly display for operating status, parameter settings, and historical data viewing.
Communication Interface: Supports communication with other systems via Ethernet, serial communication, and other interfaces.

Application Areas:

Power System: Controls high-voltage IGCT modules in inverters and traction power transmission systems.
Industrial Automation: Enhances efficiency and reliability in power conversion and control.

Design Features:

Durability: Built for harsh industrial environments with high stability.
Safety: Integrated safety functions protect IGCT modules from overloads, short circuits, and other faults.
Easy Maintenance: Intuitive operation interface simplifies daily maintenance and troubleshooting.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
