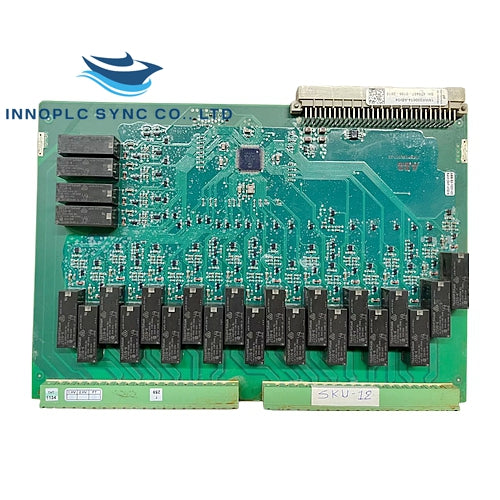

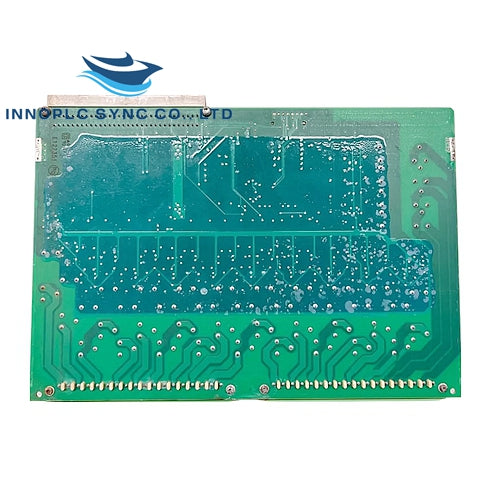

ABB | 1MRK000614-ABr04 | Relay Card

SKU: 1MRK000614-ABr04
  • Manufacturer: ABB

  • Product No.: 1MRK000614-ABr04

  • Condition:In stock

  • Product Type: Relay Card

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

The ABB 1MRK000614-ABr04 is a relay card designed to enhance the functionality and reliability of ABB’s automation systems. This relay card ensures efficient control and monitoring in industrial applications, making it a versatile and high-performance component for demanding environments.


Features

  • High Reliability: Built to withstand demanding industrial environments.
  • Compact Design: Space-saving design for easy integration.
  • Versatile Application: Suitable for various control and monitoring tasks.

Technical Specifications

Electrical Characteristics

  • Rated Voltage: 24 VDC
  • Current Capacity: Up to 2 A per relay
  • Contact Configuration: SPDT (Single Pole Double Throw)
  • Insulation Resistance: 100 MΩ at 500 VDC

Performance Metrics

  • Switching Time: < 10 ms
  • Mechanical Durability: 10 million operations
  • Electrical Durability: 100,000 operations at rated load
  • Contact Resistance: < 50 mΩ

Environmental Conditions

  • Operating Temperature: -25°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Humidity Range: 5% to 95% RH, non-condensing
  • Vibration Resistance: 10 g rms, 10 Hz to 500 Hz
  • Shock Resistance: 20 g, 11 ms half-sine

Dimensions and Weight

  • Length: 100 mm
  • Width: 80 mm
  • Height: 20 mm
  • Weight: 0.3 kg
Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
