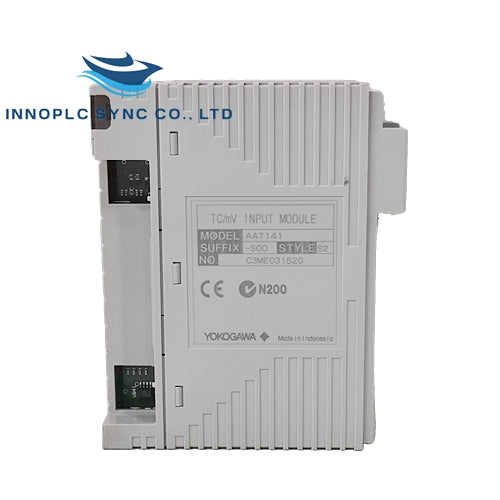

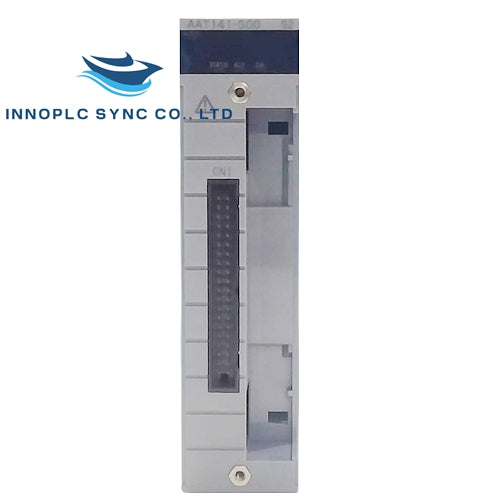

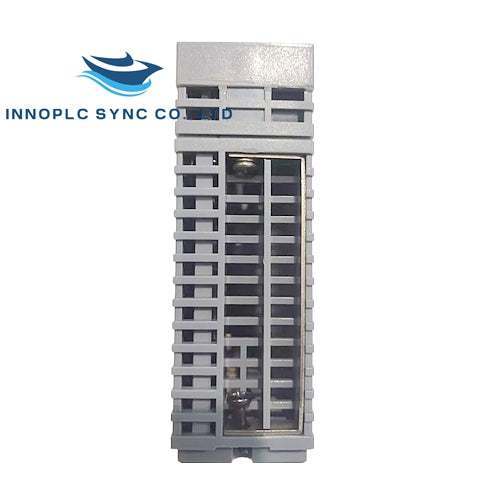

AAT141-S00 TC/RTD Input Module Yokogawa

SKU: AAT141-S00

Manufacturer: Yokogawa
Product No.: AAT141-S00
Condition：In stock
Product Type: TC/RTD Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months

Overview

The AAT141-S00 is a Yokogawa TC/RTD Input Module with 16 isolated input channels designed to handle thermocouple (TC), millivolt (mV), and resistance temperature detector (RTD) signals.

Input Channels

Number of Input Channels: 16, isolated (*7)

Input Signal

Thermocouple (TC):
- Type J, K, E, B (*1), R, S, T, N
- Standards: JIS C1602:1995, IEC584:1995
Millivolt (mV):
- Range: -100 to 150 mV, -20 to 80 mV
RTD (Resistance Temperature Detector):
- Type: Pt100, 3-wire type (*6)
- Standards: JIS C1604:1997, IEC751:1995

Allowable Input Voltage

Input Voltage: ±5 V

Withstanding Voltage

Between Input and System: 1500 V AC, for 1 minute

Input Resistance

Power ON Resistance: 2 MΩ or larger
Power OFF Resistance: 2 MΩ or larger

Accuracy

TC Accuracy: ±30 µV
mV Accuracy:
- ±80 µV for span (-100 to 150 mV)
- ±30 µV for span (-20 to 80 mV)

Allowable Total Resistance of Signal Source + Wiring

Total Resistance: 1000 Ω or less

Effect of Allowable Signal Source Resistance

Effect on Accuracy: ±20 µV (*3)

Reference Junction Compensation Accuracy

Compensation Accuracy: Within ±1 °C (*4) (*5)

Measurement Current

RTD Measurement Current: 1 mA

Temperature Drift

mV Input Drift:
- ±80 µV/10 °C (for -100 to 150 mV input)
- ±30 µV/10 °C (for TC/-20 to 80 mV input)
RTD Drift: ±120 mΩ/10 °C

Data Update

Update Period: 1 second

Burn-out

Setting: Not available/available (UP/DOWN)
Detection Time: 60 seconds
Channel Configuration: All channels can be set together

Power and Weight

Maximum Current Consumption: 450 mA (5 V DC)
Weight: 0.2 kg

External Connection

Connection Type: Pressure clamp terminal
