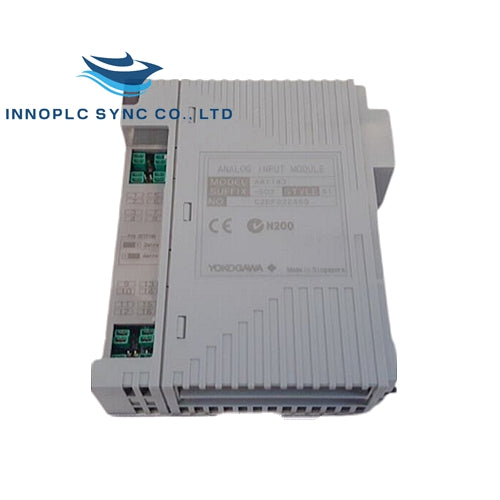

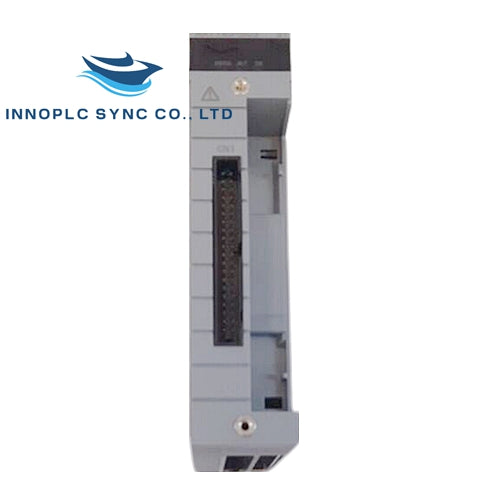

AAI143-S53 | Yokogawa | Analog Input Module

SKU: AAI143-S53

Manufacturer: Yokogawa
Product No.: AAI143-S53
Condition：In stock
Product Type: Analog Input Module
Product Origin: Japan
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

The AAI143-S53 Analog Input Module from Yokogawa offers 16 isolated input channels for precise and reliable 4-20 mA signal processing. It ensures minimal signal interference and supports HART communication for remote diagnostics and configuration.

16 Isolated Input Channels: Minimizes signal interference, ensuring stable performance.
Wide Input Range: Accepts up to 24 mA input current for flexible signal processing.
HART Communication Support: Enables remote configuration and diagnostics.
Accurate Signal Processing: ±16 µA accuracy for precise data acquisition.

Technical Specifications

Input Signal: 4 to 20 mA
Allowable Input Current: 24 mA
Withstanding Voltage: 1500 V AC for 1 minute (input to system)
Input Resistance: Power ON: 270 Ω to 350 Ω; Power OFF: 500 kΩ or larger
Accuracy: ±16 µA
Data Update Period: 10 ms
Transmitter Power Supply: 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA)
Temperature Drift: ±16 µA/10 °C
Maximum Current Consumption: 230 mA (5 V DC), 540 mA (24 V DC)
Weight: 0.3 kg

Communication and Connectivity

External Communication: Pressure clamp terminal, MIL connector cable, KS1 cable
HART Communication: Available, enables diagnostics and configuration

Environmental Conditions

Operating Temperature Range: -20°C to 70°C
Humidity Tolerance: Non-condensing humidity, suitable for industrial environments
