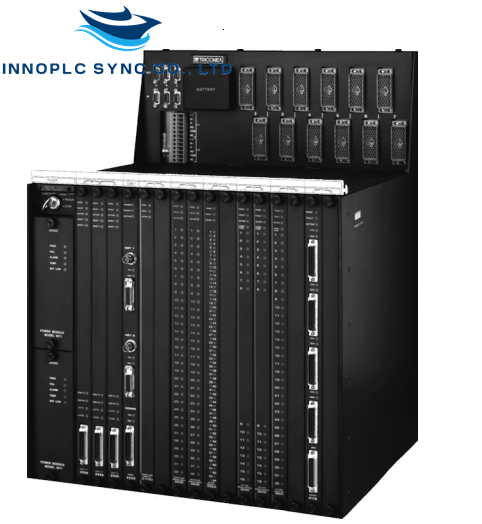

8110 | Triconex | High Density Main Chassis
Specifications
| Feature | Details |
|---|---|
| Manufacturer | ICS Triplex |
| Model | T8110B |
| Ordering Information | T8110B |
| Catalog | Trusted TMR System |
| Description | ICS Triplex T8110B Trusted TMR Processor |
| Origin | United States (US) |
| HS Code | 85389091 |
| Dimension | 16cm x 16cm x 12cm |
| Weight | 0.8kg |
Trusted TMR Processor Overview
The Trusted® Processor is the main processing component in a Trusted System, providing overall system control and monitoring. It processes input and output data from various analogue and digital I/O modules across a Trusted TMR Inter-Module Communications Bus. Applications vary in integrity level, including fire and gas control, emergency shutdown, and turbine control.
Key Features
- Triple Modular Redundant (TMR) operation with fault tolerance (3-2-0).
- Hardware Implemented Fault Tolerant (HIFT) architecture.
- Fast fault recognition and automatic fault handling.
- Time-stamped fault historian and hot replacement capability.
- Front panel indicators for module health and an RS232 diagnostics port.
- Supports IRIG-B002 and 122 time synchronization (T8110B only).
- Configurable RS422/485 and RS485 connections (T8110B only).
- TÜV Certified IEC 61508 SIL 3.
Module Configuration and Application
The Trusted TMR Processor requires no hardware configuration, relying on a System.INI configuration file. The System Configurator allows for the selection of options related to ports, IRIG, and system functions.
- Updater Section: Configures Modbus Protocol maps and sets inter-group delay.
- Security Section: Configures passwords for system interrogation via terminal programs.
- ICS2000 Section: Selects data sources for mimic tables in systems connected to ICS2000.
This processor's design and features provide a robust foundation for critical applications, ensuring high reliability and performance in various industrial environments.
