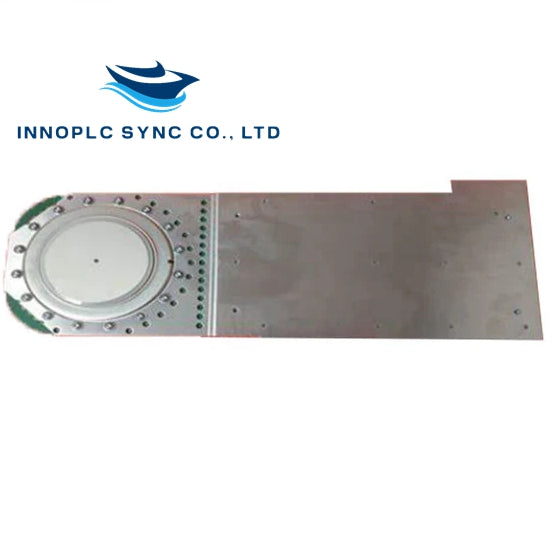

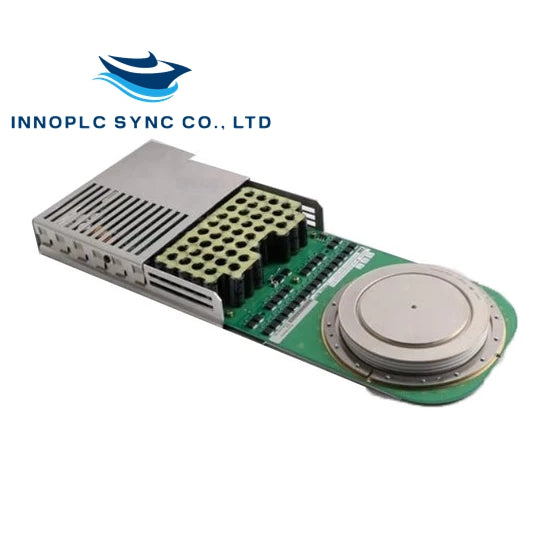

3BHE014105R0001 5SHX26L4510 5SXE05-0154 | ABB | IGBT/IGCT Module
SKU: 3BHE014105R0001 5SHX26L4510 5SXE05-0154

  • Manufacturer: ABB

  • Product No.: 3BHE014105R0001 5SHX26L4510 5SXE05-0154

  • Condition：In stock

  • Product Type: IGBT/IGCT Module

  • Product Origin: Sweden

  • Payment:T/T, Western Union

  • Weight: 1200g

  • Shipping port: Xiamen

  • Warranty: 12 months

    DESCRIPTION

    • Type:
      Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT)

      Manufacturer:
      ABB Switzerland Ltd. Semiconductors

      Product Code:
      5SHX 26L4510

      Features:

      • High snubberless turn-off rating
      • Optimized for medium frequency (<1 kHz) and low turn-off losses
      • High reliability and electromagnetic immunity
      • Simple control interface with status feedback
      • AC or DC supply voltage
      • Contact factory for series connection

      Specifications:

      Blocking:

      • Repetitive Peak Off-State Voltage (VDRM): 4500 V
      • Permanent DC Voltage for 100 FIT Failure Rate of RC-GCT (VDC-link): 2800 V

      GCT Data:

      • Max. Average On-State Current (IT(AV)M): 1010 A
      • Max. RMS On-State Current (IT(RMS)): 1590 A
      • Max. Peak Non-Repetitive Surge On-State Current (ITSM): 17 × 10³ A
      • Turn-On Switching: Critical Rate of Rise of On-State Current (diT/dtcr): 100 A/µs
      • On-State Voltage (VT): 2.3 V to 2.95 V
      • Turn-On Delay Time (tdon): 3.5 µs
      • Turn-On Energy Per Pulse (Eon): 0.85 J

      Diode Data:

      • Max. Average On-State Current (IF(AV)M): 390 A
      • Max. RMS On-State Current (IF(RMS)): 620 A
      • Max. Peak Non-Repetitive Surge Current (IFSM): 10.6 × 10³ A
      • On-State Voltage (VF): 3.54 V to 5.4 V
      • Reverse Recovery Current (IRM): 900 A
      • Reverse Recovery Charge (Qrr): 2800 µC

      Gate Unit Data:

      • Gate Unit Voltage (VGIN,RMS): 28 V to 40 V
      • Min. Current Needed to Power Up the Gate Unit (IGIN): 2.1 A
      • Gate Unit Power Consumption (PGIN): Max 100 W

      Thermal:

      • Junction Operating Temperature (Tvj): 0 °C to 125 °C
      • Storage Temperature Range (Tstg): -40 °C to 60 °C
      • Thermal Resistance Junction-to-Case of GCT (Rth(jc)): 12.6 K/kW
      • Thermal Resistance Junction-to-Case of Diode (Rth(jc)): 26 K/kW

      Visual Feedback:

      • Gate OFF LED: Green
      • Gate ON LED: Yellow
      • Fault LED: Red
      • Power Supply Voltage OK LED: Green

      Connectors:

      • Gate Unit Power Connector: AMP MTA-156, Part Number 641210-5
      • LWL Receiver for Command Signal: Avago, Type HFBR-2528
      • LWL Transmitter for Status Feedback: Avago, Type HFBR-1528
