3BHB003230R0101 3BHL000392P0101 | ABB | IGBT/IGCT Module

SKU: 3BHL000392P0101

Manufacturer: ABB
Product No.: 3BHL000392P0101
Condition：In stock
Product Type: IGBT/IGCT Module
Product Origin: Sweden
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

DESCRIPTION

Model:

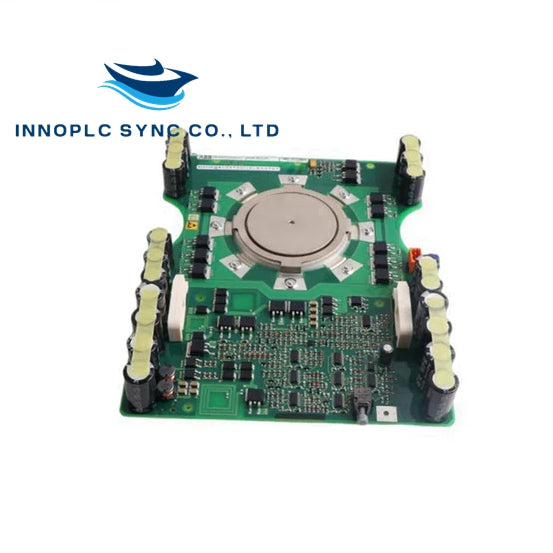

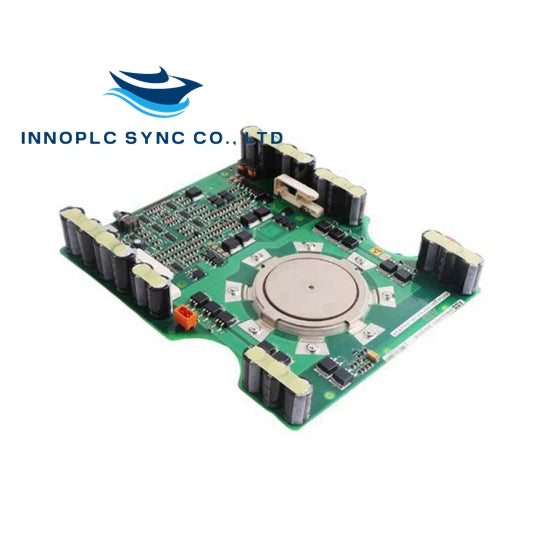

ACS1000 3BHL000392P0101 IGCT MODULE 5SHX 1060H0001

Description:
An advanced power electronic control module developed by ABB for high-voltage, high-power applications. This module integrates ABB's expertise in power electronics to provide efficient and stable power control solutions.

Key Features

IGCT Technology:

Integrates Gate Turn-Off Thyristor (IGCT) technology

Fast response and low switching losses

Enhances power conversion efficiency

Thermal Design:

Advanced thermal design and heat dissipation technology

Effective temperature control during high-power operation

Prevents overheating

Protection Mechanisms:

Overcurrent protection

Overheat protection

Safeguards equipment and system safety by cutting off power during abnormal conditions

Function

Power Management:

The board manages the power supply for the IGCT module, ensuring it receives the correct voltage and current levels for efficient operation.

Specifically, the 3BHB003230R0101 controls the power supply for the 3BHL000392P0101 IGCT module (5SHX 1060H0001).

Technical Specifications

Function:

Main power switching component in the drive

Switches high currents and voltages using IGCT technology to drive the motor

Rated Voltage: 6 kV

Rated Current: 1060 A

Power Drive Board

Model: 3BHB003230R0101

Function:

Provides controlled power to the IGCT module (3BHL000392P0101)

Enables effective operation of the IGCT module

The IGCT module uses this power to switch currents and voltages, driving the motor in the ABB ACS1000 drive

Application and Compatibility

Application:

Designed for medium voltage drives, such as the ABB ACS1000 drive

Compatibility:

Compatible with the 3BHL000392P0101 IGCT module (5SHX 1060H0001)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
