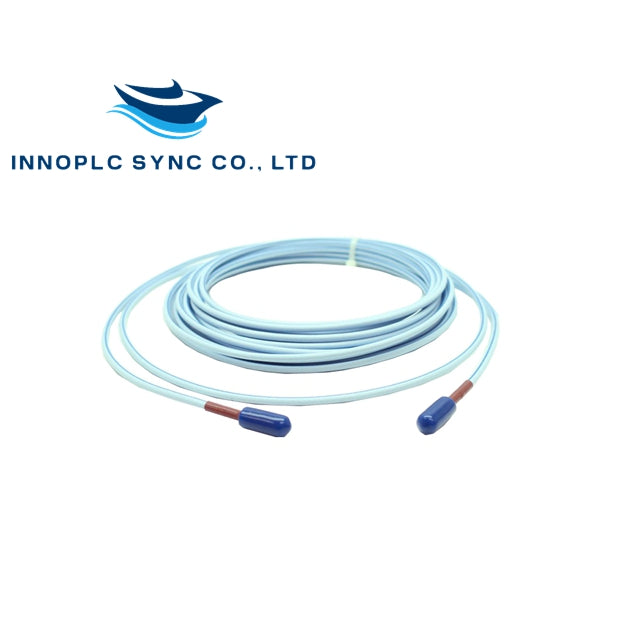

330130-030-00-05 | Bently Nevada 3300 XL Standard Extension Cable
Description
Features of the GE 3300 XL 8mm Proximity Transducer System
-
Ideal for:
- Compression Systems
- Speed Measurements
- Fluid-Film Bearing Machines
-
Extended Temperature Range Applications
-
Complete Interchangeability:
- Units and cabling are fully interchangeable.
-
Backward Compatibility:
- Compatible with other non-3300 XL series transducer system components.
System Overview
The GE 3300 XL 8mm Proximity Transducer System consists of:
- One 3300 XL 8mm Probe
- One 3300 XL Extension Cable
- One 3300 XL Proximitor Sensor
This system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. It can measure both static (position) and dynamic (vibration) values.
Primary Applications:
- Vibration and position measurements on fluid-film bearing machines
- Keyphasor reference and speed measurements
Compliance
The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute's (API) 670 Standard (4th Edition) for:
- Mechanical configuration
- Linear range
- Accuracy
- Temperature stability
Interchangeability and Compatibility
- All 3300 XL 8 mm proximity transducer systems support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for matching or bench calibration of individual components.
- Each 3300 XL 8 mm Transducer System component is backward-compatible with other non-XL 3300 series 5 mm and 8 mm transducer components, including the 3300 5 mm probe, which is suitable for applications with limited mounting space.
Additional Information
- 3300 XL Proximitor Sensor Part Number Breakdown: (Not included when sold from Artisan unless specified)
