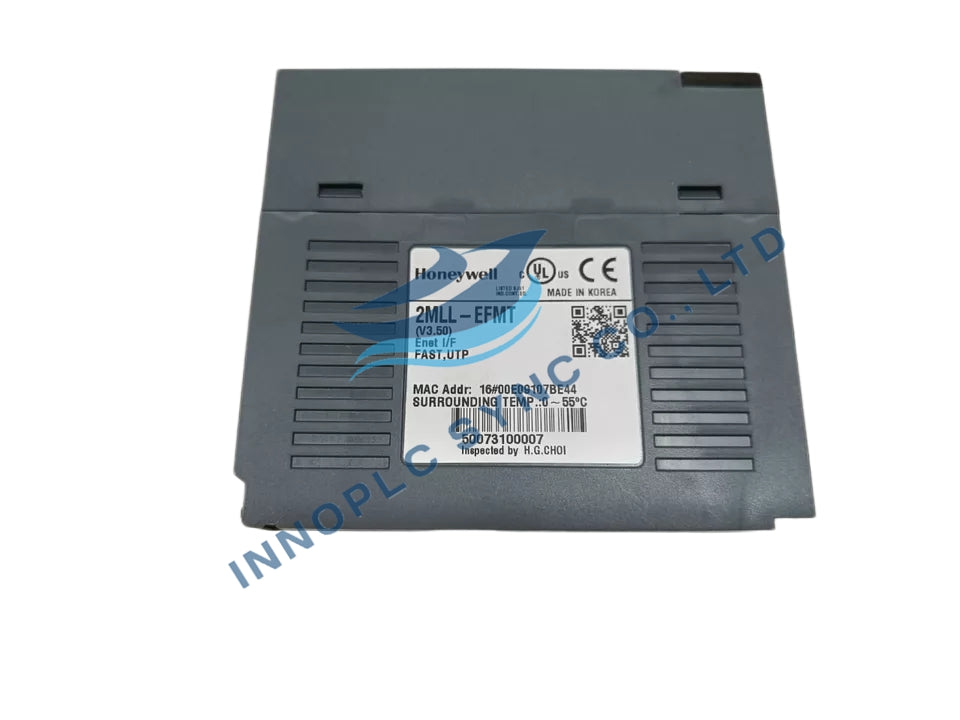

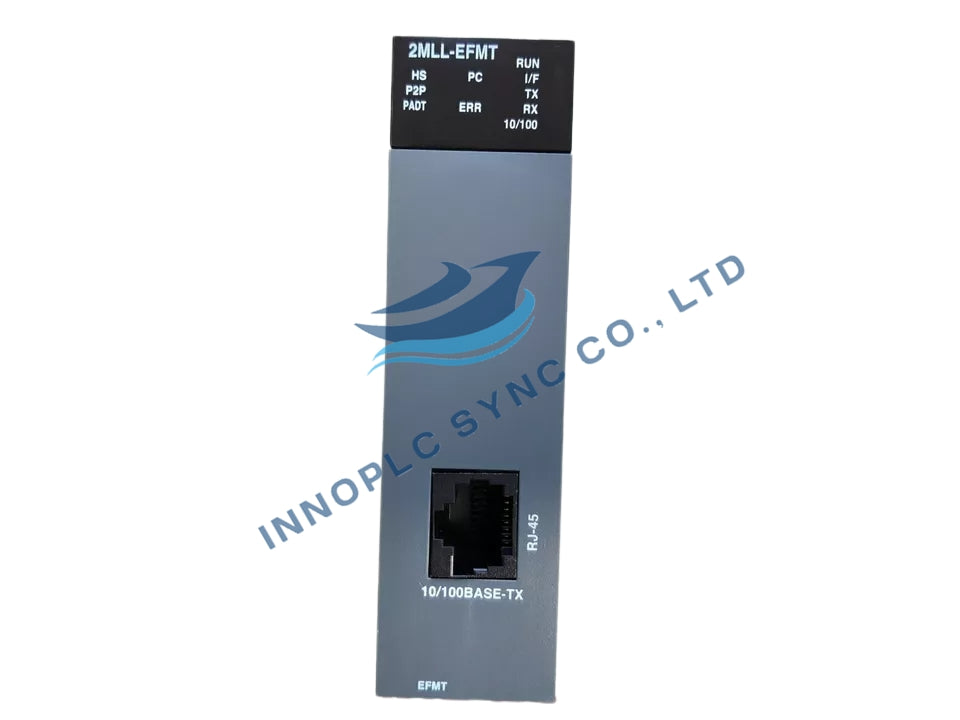

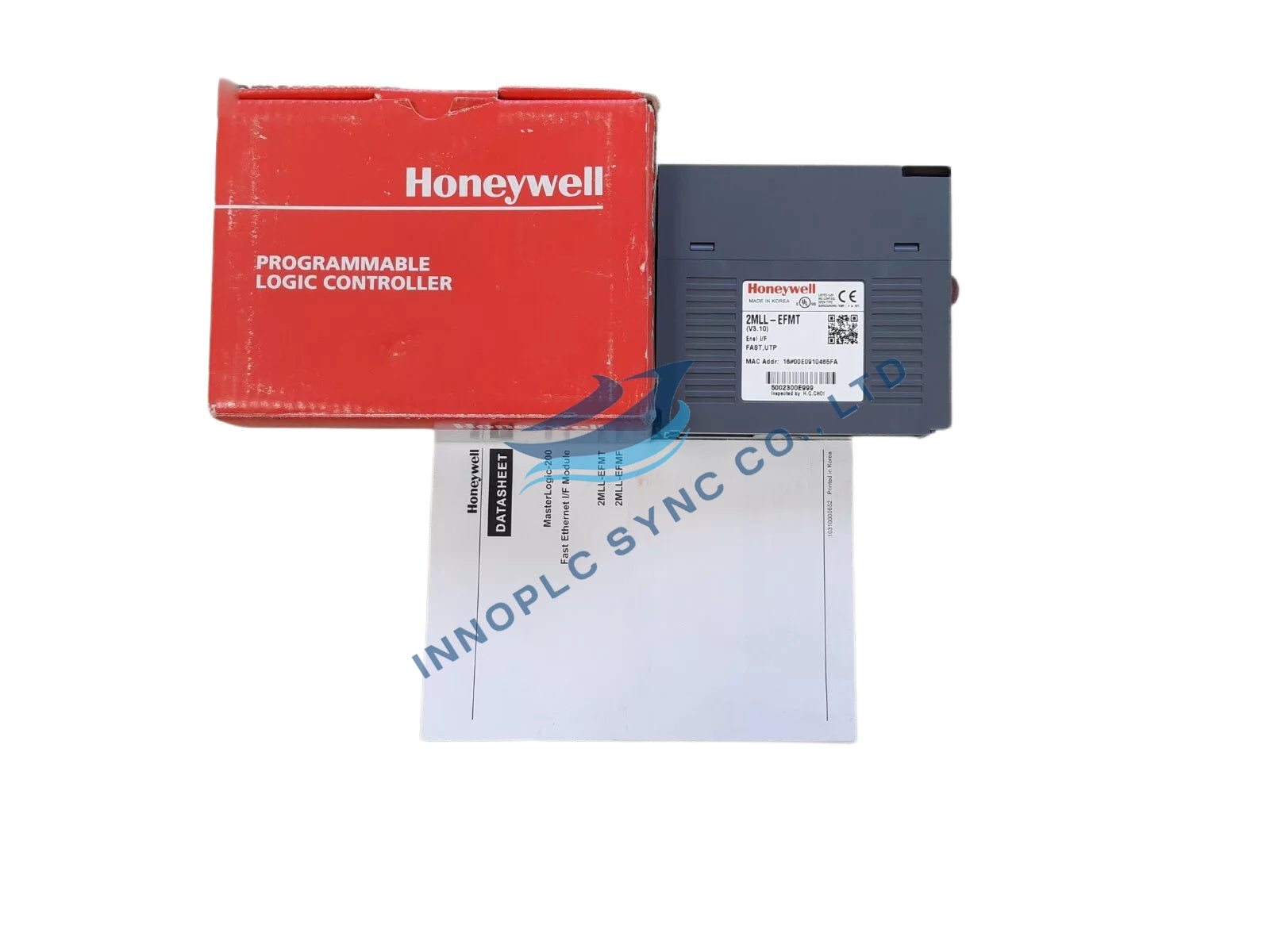

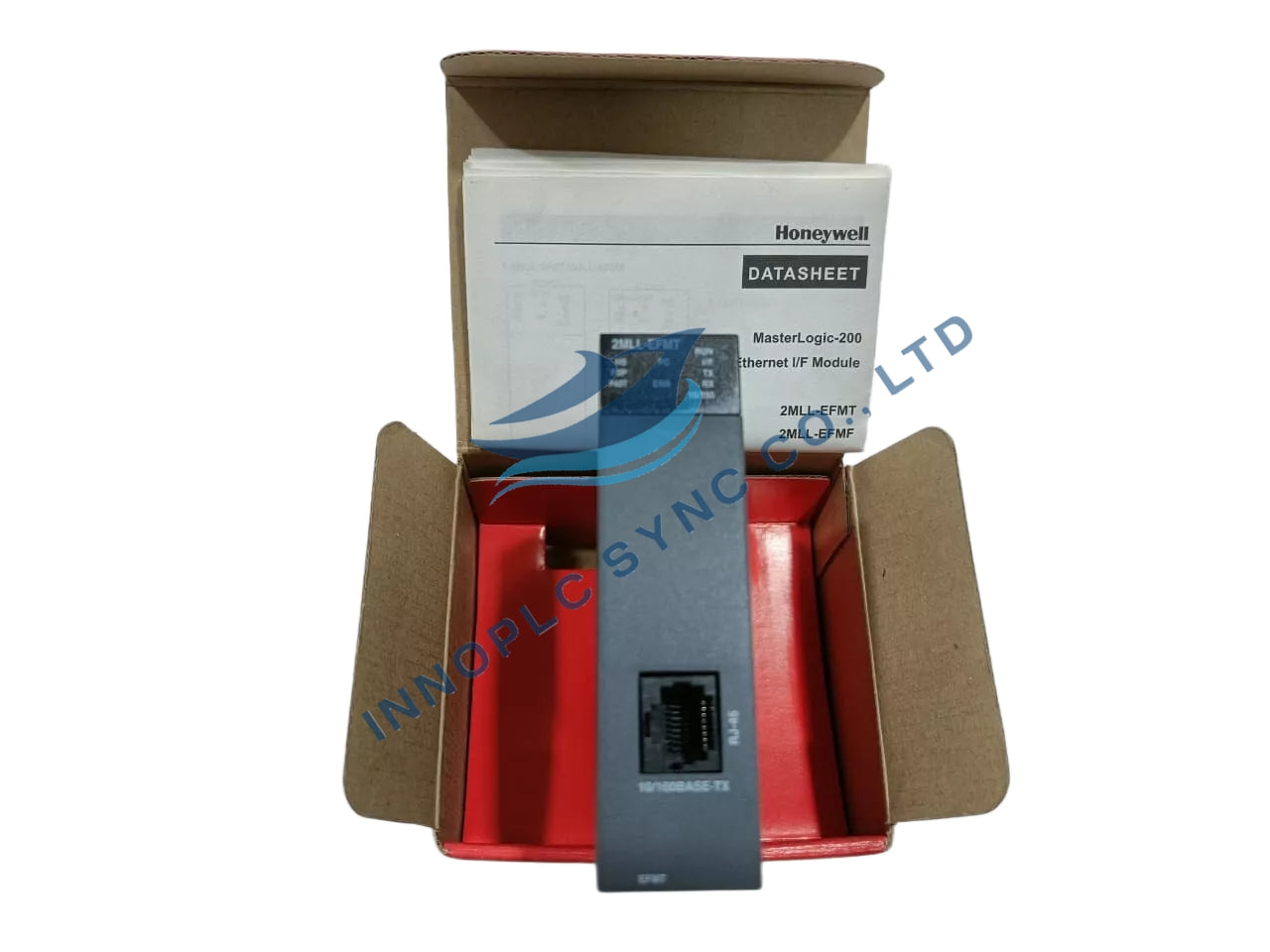

2MLL-EFMT| Honeywell| Fast Ethernet Module

SKU: 2MLL-EFMT

Manufacturer: Honeywell
Product No.: 2MLL-EFMT
Condition：In stock
Product Type: Fast Ethernet Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description

The 2MLL-EFMT is a Fast Ethernet module designed for the MasterLogic 200 PLC system, supporting both 10 and 100 Mbps transmission speeds. It enables communication over twisted pair (CAT5) media, conforming to IEEE802.3U standards. This module facilitates integration with other PLCs, Experion systems, MODBUS TCP-IP, and SoftMaster interfaces, all concurrently.

Features

Supports 10/100 Mbps Ethernet speeds.
Compatible with CAT5 twisted pair cables.
Adheres to IEEE802.3U Ethernet standards.
Utilizes CSMA/CD for network control.
Integrates multiple protocols including HSL, MLDP, MODBUS TCP slave, and P2P.

Technical Specifications

Ethernet Standard: IEEE802.3U
Protocols: TCP-IP, UDP-IP
Network Control Protocol: CSMA/CD
Software Firewall: Configurable via IP address settings in SoftMaster-NM
Public Network Access: Supports DNS server and Gateway IP address settings
Dynamic IP Address: DHCP protocol support
Transmission Speed: 10/100 Mbps
Physical Layer: 100baseTx (Twisted Pair)
Media: UTP/STP, CAT5 with RJ45 connector
Transmission Distance: 100 meters (Switch/Node, UTP/STP)
Maximum Number of Nodes: 64
Services/Protocols:
- HSL: Peer-to-Peer High Speed Link with other MasterLogic PLCs
- HSL Send/Receive blocks: 200 words/block, up to 128 blocks
- MLDP: Experion Interface – MasterLogic Dedicated Protocol
- MODBUS TCP slave: MODBUS TCP slave protocol
- P2P: MODBUS TCP master, User defined Protocol master
Communication Modules per CPU: Up to 24 modules (Max 12 HSL services & 8 P2P services per CPU)
Network Diagnostics: Auto-scan, Ping Test, Frame Monitor, Link Monitor, Loop back (as applicable)
