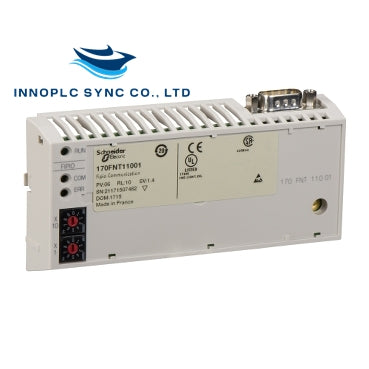

170FNT11001 | SCHNEIDER | Fipio Communication Adaptor

SKU: 170FNT11001

Manufacturer: SCHNEIDER
Product No.: 170FNT11001
Condition：In stock
Product Type: Fipio Communication Adaptor
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

DESCRIPTION

Fipio Communication Adapter Specifications

Product Overview:
This product is part of the Modicon Momentum range, featuring controllers and IP20 monoblock I/Os for distributed control architecture. The Fipio communication adapter supports fibre and twisted shielded pairs cable, offering a 1 Mbps transmission rate. It weighs 0.11 kg and is designed for applications in infrastructures, energy, material handling, and simple machine control. The adapter is certified by CE, UL, and CSA.

Main Specifications
- Range of Product: Modicon Momentum Automation Platform
- Product Type: Fipio Communication Adapter
- Bus Manager PLC: Premium
- Structure Type: Open industrial support conforming to FIP standard
- Communication Protocol: Fipio
- Access Method: Producer/consumer principle
- Transmission Rate: 1 Mbit/s
- Transmission Support Medium:
  - Optical Fibre 50/125
  - Twisted Shielded Pairs Cable
  - Optical Fibre 62.5/125
Complementary Specifications
- Topology: Extension or tap off cable
- Number of Devices per Segment:
  - 0 to 31 without repeater
  - 0 to 97 with repeater
- Maximum Cable Distance: 5000 m
- Fail State: Maintain value, forcing to state zero, fallback to zero
- Supply: From I/O base
Marking and Signaling
- Marking: CE
- Local Signaling:
  - 1 LED (Green): Module powered up or in service (RUN)
  - 1 LED (Red): Fault state (ERR)
  - 1 LED (Yellow): Receive or send data (COM)
- Net Weight: 0.11 kg
Environmental Specifications
- Certifications: CE, UL, CSA
- Protective Treatment: TC
- Resistance to Electrostatic Discharge:
  - 4 kV contact (IEC 801-2)
  - 8 kV on air (IEC 801-2)
- Resistance to Electromagnetic Fields: 10 V/m (80...1000 MHz, IEC 801-3)
- Operating Temperature: 0 to 60 °C
- Storage Temperature: -40 to 85 °C
- Relative Humidity: 95% without condensation
- Operating Altitude: ≤ 5000 m
Packaging Information
- Unit Type of Package: PCE
- Number of Units in Package: 1
- Package Dimensions:
  - Height: 5.5 cm
  - Width: 18.0 cm
  - Length: 26.0 cm
- Package Weight: 185.0 g

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
