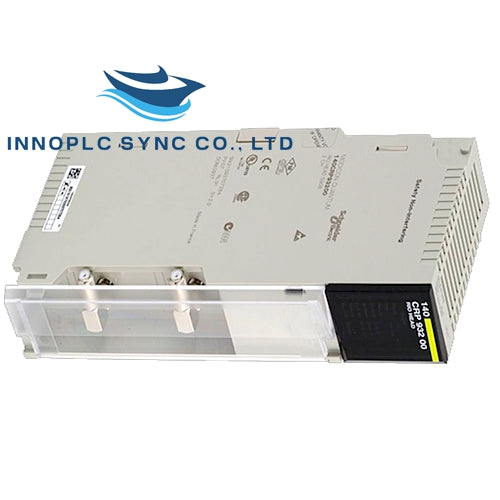

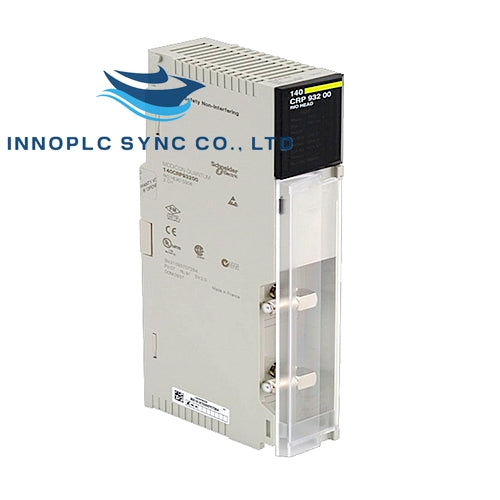

140CRP93200 | SCHNEIDER | RIO Head-End Adaptor Module

SKU: 140CRP93200

Manufacturer: SCHNEIDER
Product No.: 140CRP93200
Condition：In stock
Product Type: RIO Head-End Adaptor Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

Main

Range of product: Modicon Quantum automation platform
Product or component type: RIO head-end adaptor module

Complementary

Product compatibility: Quantum 200/500/800 series, Symax (any mix)
Drops/network: ≤ 31
I/O words/drop: 64 I/64 O
Type of cable: Coaxial 75 Ohm
Transmission rate: 1544 Mbit/s
Dynamic range: 35 dB
Isolation voltage: 500 V DC (coaxial center and ground)
Electrical connection: 2 female connectors F elbowed with redundant cable
Diagnostics:
- Startup LAN controller check
- Memory check
- Power up
Power dissipation in W: 3 W (2 channels)
Marking: CE
Bus current requirement: 750 mA (2 channels)
Module format: Standard

Environment

Product certifications: FM Class 1 Division 2
Standards: CSA C22.2 No 142, CUL, UL 508
Resistance to electrostatic discharge:
- 4 kV contact conforming to IEC 801-2
- 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields: 10 V/m (80...1000 MHz conforming to IEC 801-3)
Ambient air temperature for operation: 0...60 °C
Ambient air temperature for storage: -40...85 °C
Relative humidity: 95 % without condensation
Operating altitude: ≤ 5000 m
