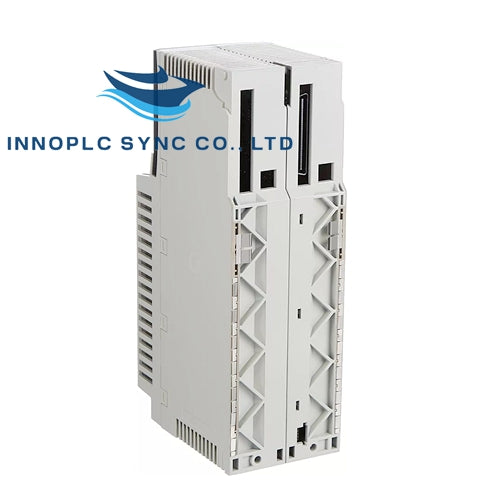

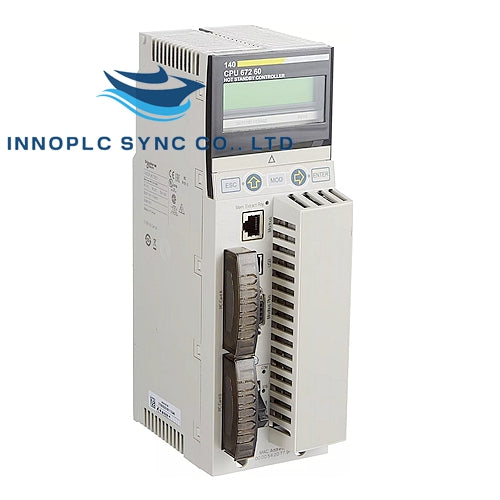

140CPU67260 | SCHNEIDER | Unity Hot Standby Processor

SKU: 140CPU67260

Manufacturer: SCHNEIDER
Product No.: 140CPU67260
Condition：In stock
Product Type: Unity Hot Standby Processor
Product Origin: USA
Payment:T/T, Western Union
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months

Main

Range of Product: Modicon Quantum automation platform
Product or Component Type: Unity processor

Complementary

Mode of Transmission: Multi mode
Clock Frequency: 266 MHz
Number of Slots: 10, 16, 4, 6, 2
Number of Racks: 2 - local
Number of Distributed I/O Stations: 63 (1, 3 Modbus Plus)
Number of Remote I/O Stations:
- 31 - 2 S908 remote I/O
- 31 - 2 Ethernet Quantum remote I/O
- 31 - 2 Ethernet X80 remote I/O
Discrete I/O Number:
- 31,744 inputs, 31,744 outputs - remote
- 8,000 inputs, 8,000 outputs - distributed (per network Modbus Plus)
- Unlimited (31 drops of 28 slots max) - Ethernet remote I/O
- 0 - local (forbidden in Hot Standby application)
Analogue I/O Number:
- 500 inputs, 500 outputs - distributed (per network Modbus Plus)
- Unlimited (31 drops of 28 slots max) - Ethernet remote I/O
- 1,984 inputs, 1,984 outputs - remote
- 0 - local (forbidden in Hot Standby application)
Application Specific I/O:
- Accurate time stamping
- Counter
- Serial link
- High-speed interrupt inputs
Communication Service: Ethernet router
Number of Optional Modules: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum Number of Connections:
- 1 USB
- 2 AS-Interface - distributed
- 4 AS-Interface - remote
- 6 Ethernet TCP/IP - local
- 6 Modbus Plus - local
- 6 Profibus DP - local
- 1 Modbus RS232/485 (Modbus/ASCII)
Integrated Connection Type:
- 1 Modbus Plus
- 1 Modbus
- 1 USB
- 1 optic fibre (Hot Standby)
Checks: Process control, Hot standby

Memory Description

Expandable:
- 7,168 kB - program with PCMCIA card
- 8 MB - file storage with PCMCIA card
Internal RAM: 3,072 kB (1,536 kB for data)

Switch Function

Key Switch: Memory port on/off
Application Structure:
- 1 periodic fast task (forbidden in Hot Standby application)
- 128 I/O interrupt tasks (forbidden in Hot Standby application)
- 128 interrupt tasks (forbidden in Hot Standby application)
- 32 timer interrupt tasks (forbidden in Hot Standby application)
- 4 auxiliary tasks (forbidden in Hot Standby application)
- 1 cyclic/periodic master task

Performance

Number of Instructions per ms:
- 10.28 Kinst/ms (100 % Boolean)
- 10.07 Kinst/ms (65 % Boolean and 35 % numerical)
System Overhead:
- 0.2 ms fast task
- 1 ms master task

Electrical Requirements

Bus Current Requirement: 2,760 mA
Local Signalling:
- For Ethernet activity (COM): 1 LED (yellow)
- For configuration status (STS): 1 LED (yellow)

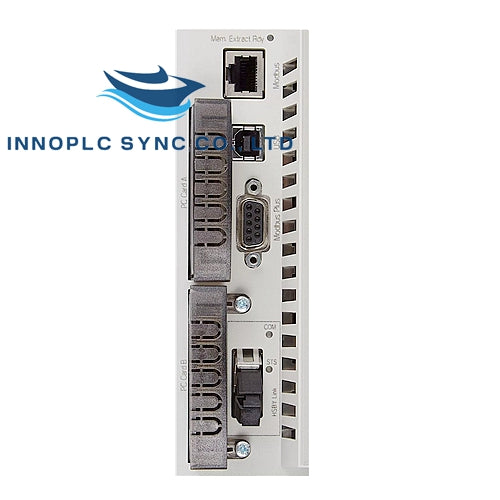

Electrical Connection:
- 1 female connector SUB-D 9 for connecting to the Modbus Plus network
- 1 connector RJ45 for connecting Modbus bus
- 1 connector MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs (up to 4 km)

Environment

Product Certifications: Misc (Marine), GOST, CE, CSA, UL
Standards: HazLoc
