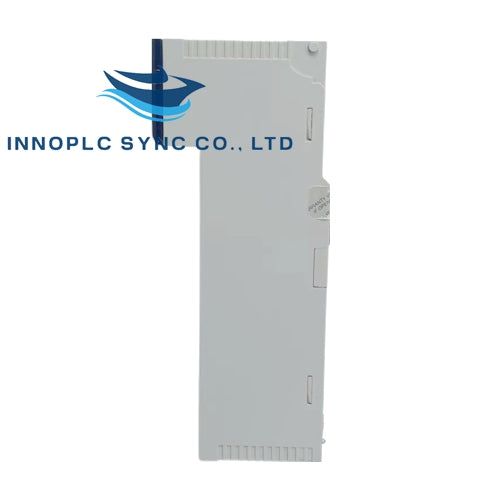

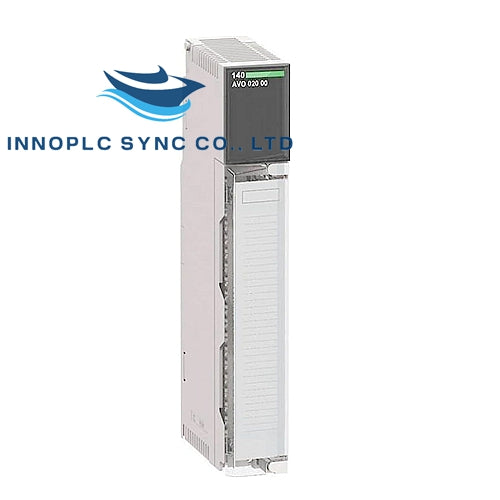

140AVO02000 | SCHNEIDER | Analog Output Module Modicon Quantum

SKU: 140AVO02000

Manufacturer: SCHNEIDER
Product No.: 140AVO02000
Condition：In stock
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Main

Range of product: Modicon Quantum automation platform
Product or component type: Analogue output module

Complementary

Analogue output number: 4
Addressing requirement: 4 output words
Analogue output range:
- 0...5 V (≥ 500 Ohm unipolar voltage)
- 0...10 V (≥ 1000 Ohm unipolar voltage)
- ±5 V (≥ 500 Ohm bipolar voltage)
- ±10 V (≥ 1000 Ohm bipolar voltage)
Analogue output resolution: 12 bits
Analogue output current: -10...10 mA
Source resistance: 0.1 Ohm
Cable length: ≤ 400 m
Absolute accuracy error: ±0.15 % of full scale at 25 °C
Linearity: ±1 LSB
Accuracy drift according to temperature:
- 0.007 % of full scale/°C (maximum bipolar)
- 0.005 % of full scale/°C (maximum unipolar)
- 0.004 % of full scale/°C (bipolar)
- 0.003 % of full scale/°C (unipolar)
Isolation between channels: 500 V for 1 minute (47...63 Hz AC)
Isolation between channels and bus: 780 V for 1 minute AC
Update time: 3 ms
Setting time: 700 µs to ±0.1 % of the final value (maximum)
Bus current requirement: 700 mA
Power dissipation in W: ≤ 4.5 W
Associated fuse rating: 0.063 mA (3 AG fast blow, 250 V)
Marking: CE
Local signalling:
- 4 LED red (channel fault)
- 4 LED green (channel is turned on)
- 1 LED red (external fault)
- 1 LED green (bus communication is present)
Module format: Standard
Product weight: 0.3 kg

Environment

Product certifications: CUL, FM Class 1 Division 2
Standards: CSA C22.2 No 142, UL 508
Resistance to electromagnetic fields: 10 V/m (80...2000 MHz conforming to IEC 801-3)
Ambient air temperature for operation: 0...60 °C
Ambient air temperature for storage: -40...85 °C
Relative humidity: 95 % without condensation
Operating altitude: ≤ 5000 m

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
