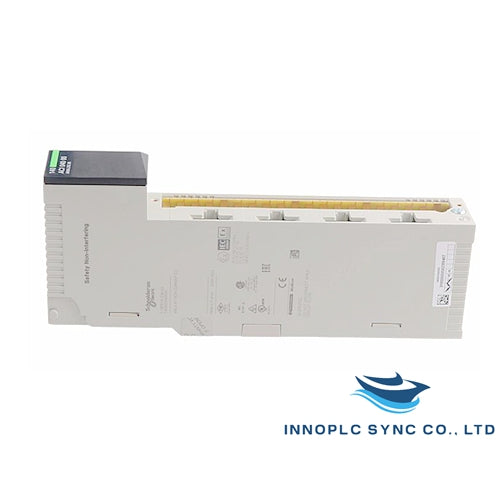

140ACI04000 | SCHNEIDER | Analog Input Module Modicon Quantum

SKU: 140ACI04000

Manufacturer: SCHNEIDER
Product No.: 140ACI04000
Condition：In stock
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

Overview

The 140ACI04000 is an Analog Input Module for the Modicon Quantum automation platform by Schneider Electric. It features 16 differential analog inputs and offers multi-range capabilities, supporting a wide range of input signals for industrial applications.

Specifications

Product Type: Analog Input Module
Platform: Modicon Quantum Automation
Filter Type: Single pole low pass – 3 dB at 34 Hz ±25%

Input & Resolution

Analog Inputs: 16
Input Type: Differential
Input Resolution:
- 0...16000 counts for 4...20 mA
- 0...20000 counts for 0...20 mA
- 0...25000 counts for 0...25 mA
- 0...4095 counts for 4...20 mA

Accuracy & Performance

Accuracy: ±0.125% of full scale
Maximum Error (4...20 mA): ±12 µA
Maximum Error (0...20 mA): ±6 µA
Temperature Coefficient: ±0.0025% of full scale/°C
Power Supply Requirement: 360 mA bus current
Power Dissipation: 5 W

Environmental Conditions

Operating Temperature: 0...60°C (32...140°F)
Storage Temperature: -40...85°C (-40...185°F)
Humidity: 95% without condensation
Altitude: ≤ 5000 m

Physical Details

Module Format: Standard
Product Weight: 0.3 kg (0.66 lbs)

Compliance & Safety

Certifications:
- CSA C22.2 No 142
- UL 508
- CUL
- FM Class 1 Division 2
Electrostatic Discharge: 4 kV contact, 8 kV air (IEC 801-2)
Electromagnetic Resistance: 10 V/m, 80...1000 MHz (IEC 801-3)

Indicators

Bus Communication: 1 LED (green) – Active
External Fault: 1 LED (red)
Channel Status: 16 LEDs (green for active, red for fault)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
