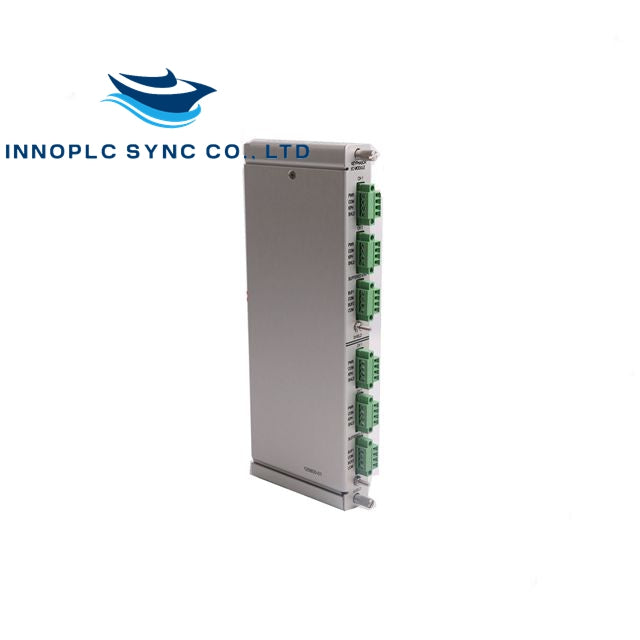

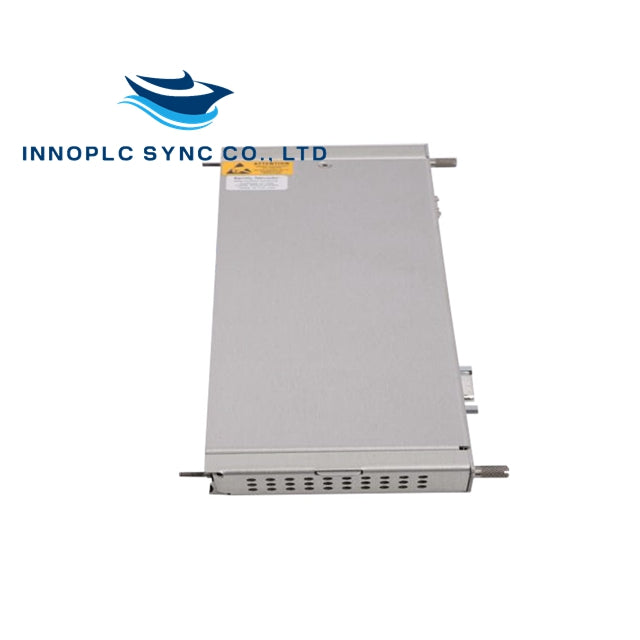

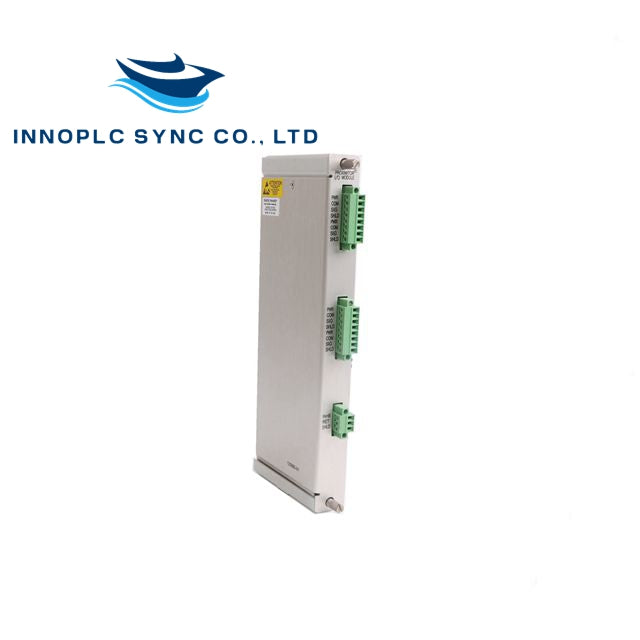

133396-01 | Bently Nevada Overspeed Detection I/O Module
SKU: 133396-01

  • Manufacturer: BENTLY NEVADA

  • Product No.: 133396-01

  • Condition：In stock

  • Product Type: Overspeed Detection I/O Module

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 2000g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

    Specifications for 133396-01 Overspeed Detection I/O Module

    • Part Number: 133396-01
    • Manufacturer: Bently Nevada
    • Country of Manufacture: United States (USA)
    • Product Type: Overspeed Detection I/O Module
    • Series: 3500
    • Weight: 0.45 kg
    • Operating Temperature: -30 °C to +65 °C

    Overview

    The 133396-01 is an Overspeed Detection I/O Module developed by Bently Nevada, designed for use in the 3500/53 Electronic Overspeed Detection System. This system is a highly dependable, quick-response, redundant tachometer solution intended to meet the overspeed protection requirements of API Standards 670 and 612. It supports configurations for 2-out-of-2 or 2-out-of-3 voting systems and requires a 3500 rack with multiple power sources.

    Input Signal Specifications

    • Input Type: Accepts a single transducer signal from a proximity probe transducer or magnetic pickup.
    • Voltage Range: +10.0 V to -24.0 V (excess signals are internally limited).

    Front Panel LEDs

    • OK LED: Indicates the module is functioning properly.
    • TX/XR LED: Illuminates when communicating with other modules in the rack.
    • Bypass LED: Lights up when the module is in Bypass Mode.
    • Test Mode LED: Indicates the module is in Test Mode.
    • Alarm LEDs: Signal an alarm condition associated with the relay.

    Transducer Conditioning

    • Auto Threshold:
      • For inputs over 0.0167 Hz (1 rotation per event).
      • Minimum triggering signal amplitude: 1 volt peak-to-peak.
    • Manual Threshold:
      • User-selectable from +9.9 Vdc to -23.9 Vdc.
      • Minimum triggering signal amplitude: 500 millivolts peak-to-peak.
    • Hysteresis:
      • Configurable range of 0.2 to 2.5 volts.
