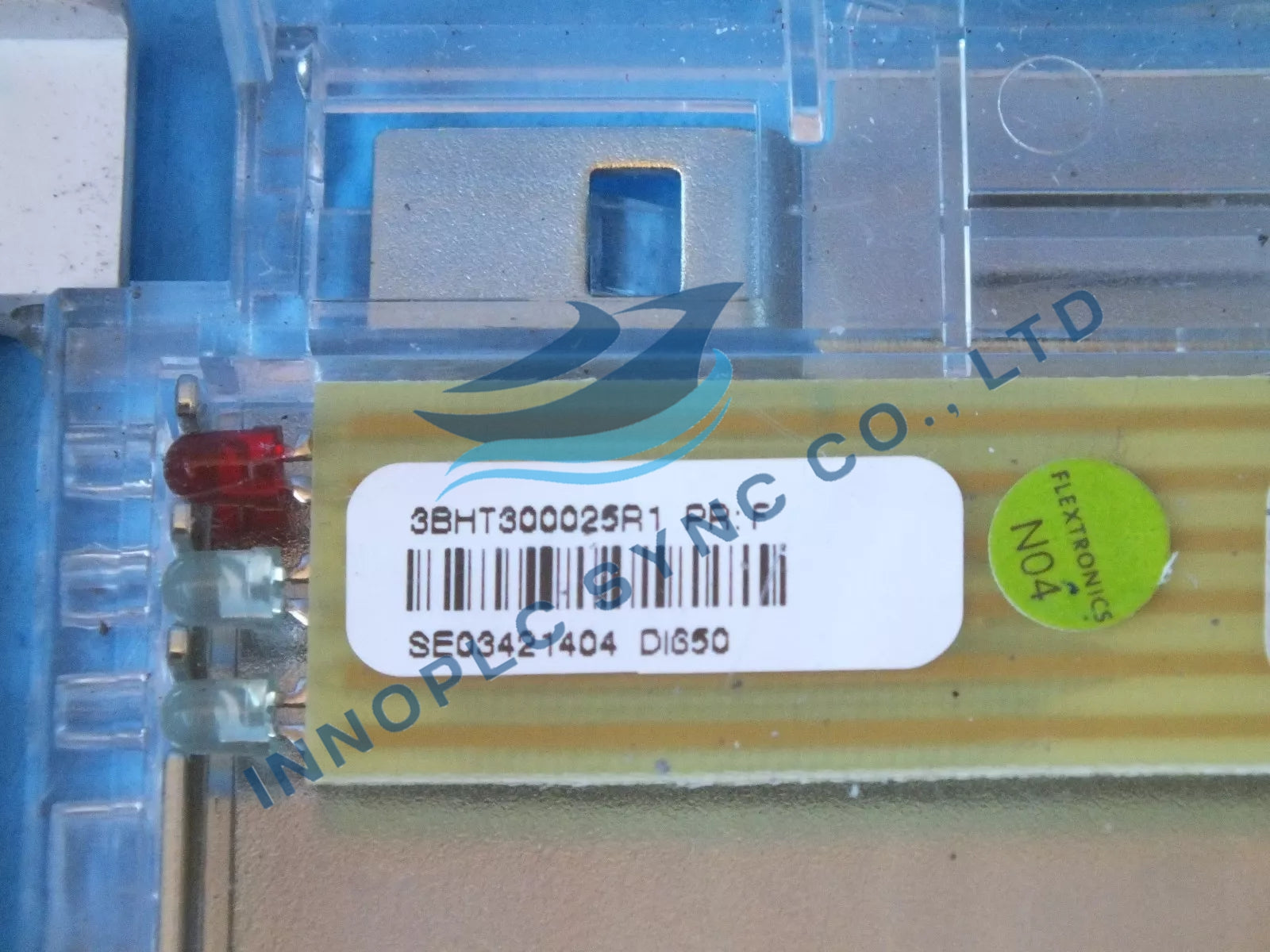

DI650 3BHT300025R1| ABB | Digital Input Module
SKU: DI650 3BHT300025R1

  • Manufacturer: ABB

  • Product No.: DI650 3BHT300025R1

  • Condition：En stock

  • Product Type: Digital Input

  • Product Origin: USA

  • Payment:T/T, Western Union

  • Weight: 105g

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The DI650 3BHT300025R1 is a digital input module designed for industrial automation and control systems. It is used to interface with digital sensors, switches, and other binary signal sources. The module provides reliable and accurate monitoring of digital signals, making it suitable for applications in manufacturing, process control, and machine monitoring.

Features

  • High-Density Input Channels: Supports multiple digital inputs.
  • Isolated Channels: Each channel is electrically isolated to prevent interference.
  • Status Indicators: LED indicators for each channel to monitor input status.
  • Wide Operating Voltage Range: Compatible with various input voltage levels.
  • Reverse Polarity Protection: Protects against incorrect power connections.
  • Compact Design: Space-saving form factor for easy integration into control panels.
  • Cold Climate Design Option: Suitable for use in colder environments.

Technical Specifications

  • Channels:

    • Number of channels: 16 (typical for this class of modules)

  • Input Voltage Range:

    • High: 15 V DC to 34 V DC
    • Low: 0 V DC to 5 V DC

  • Input Current:

    • Max per channel: 10 mA (typical)

  • Internal Resistance: 6.8 kΩ

  • LED Status Indication: Green LED per channel

  • Isolation:

    • Channel-to-channel isolation: 500 V
    • Channel-to-ground isolation: 500 V

  • Power Supply:

    • Voltage: 18 V DC to 34 V DC
    • Reverse polarity protection: Yes

  • Environmental Conditions:

    • Operating temperature: -30°C to +60°C (-22°F to +140°F)
    • Storage temperature: -40°C to +85°C (-40°F to +185°F)
    • Humidity: 95%, non-condensing

  • Compliance and Certifications:

    • EMC: Standards EN 61000-6-2, EN 61000-6-4, Directive 2014/30/EU
    • Electrical Safety: Standards CSA C22.2 61010-1, UL EN 61010-1, Directive 2014/35/EU
    • RoHS: Directive 2011/65/EU
