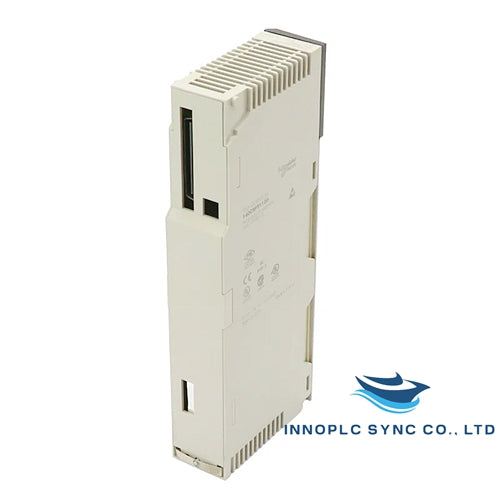

140CRP81100 | SCHNEIDER | Profibus DP Master Communications Module

SKU: 140CRP81100

Manufacturer: SCHNEIDER
Product No.: 140CRP81100
Condition：In stock
Product Type: Profibus DP Master Communications Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 380g
Shipping port: Xiamen
Warranty: 12 months

Overview

The 140CRP81100 is a Profibus DP Master Communications Module for Schneider Electric's Quantum Automation Series. It provides seamless interface capabilities to Profibus-DP networks, enabling communication between field devices and control systems.

Specifications

Programming Software:
- Modsoft version 2.32 or greater
- Concept version 2.2 or greater
Bus Current Required: 1.2 A
Power Dissipation: 6.5 W

Data Interface

RS-232C: 9-pin D-shell, non-isolated, shielded cable, 3 m max, 19.2 Kbps default
RS-485: Profibus, up to 12 Mbps

Installation

Installation Type: Local backplane only

Bus Specifications

Maximum Bus Nodes: 32
Bus Lengths (at 12 Mbps cable):
- 1.2 km at 9.6 Kbps
- 1.2 km at 19.2 Kbps
- 1.2 km at 93.75 Kbps
- 1.0 km at 187.5 Kbps
- 0.5 km at 500 Kbps
- 0.2 km at 1.5 Mbps
- 0.1 km at 3 Mbps
- 0.1 km at 6 Mbps
- 0.1 km at 12 Mbps
Transmission Media: Shielded twisted pair
Connection Interface: EIA RS-485

Communication & Protocol

Node Type: Master class 1
Bus Access Procedure: Master/slave to DP bus slaves
Transmission Procedure: Half-duplex
Frame Length: Max. 255 bytes
Data Unit Length: Max. 246 bytes
Data Security: Hamming distance, HD = 4
Node Addresses: 1...126

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
