SCHNEIDER|TSXDST2472|Discrete Output Module

SKU: TSXDST2472

Manufacturer: SCHNEIDER
Product No.: TSXDST2472
Condition：In stock
Product Type: Discrete Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 70g
Shipping port: Xiamen
Warranty: 12 months

Description

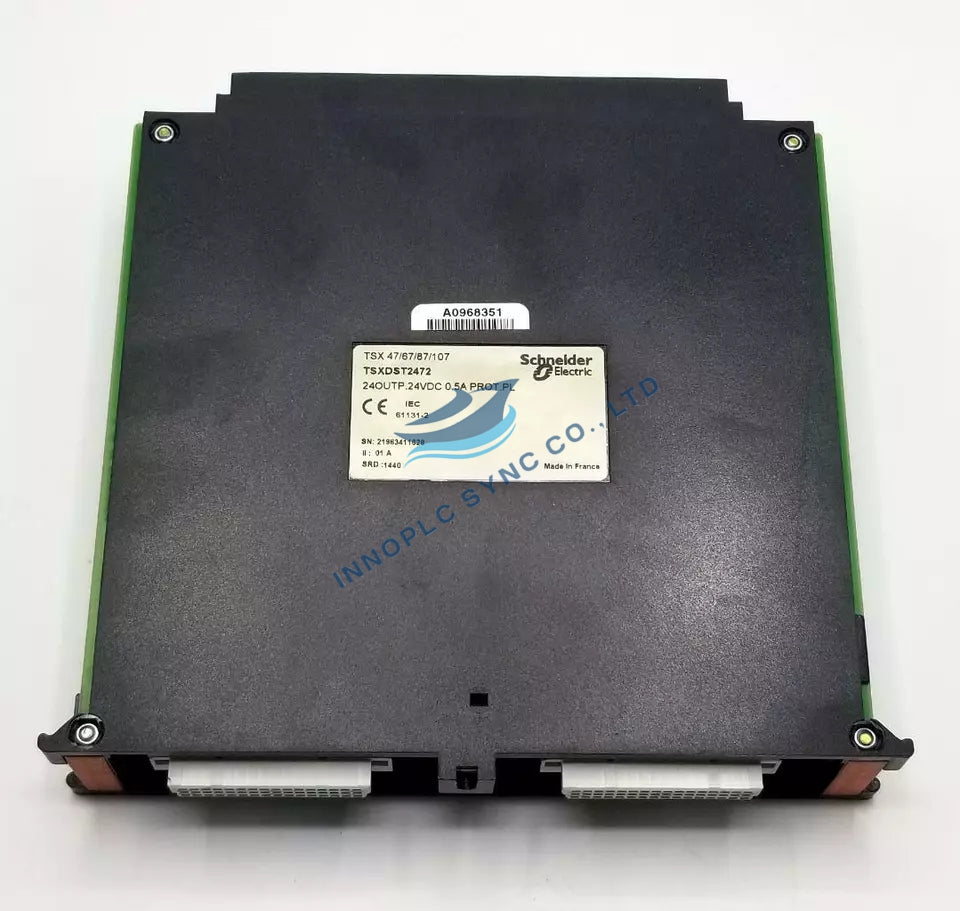

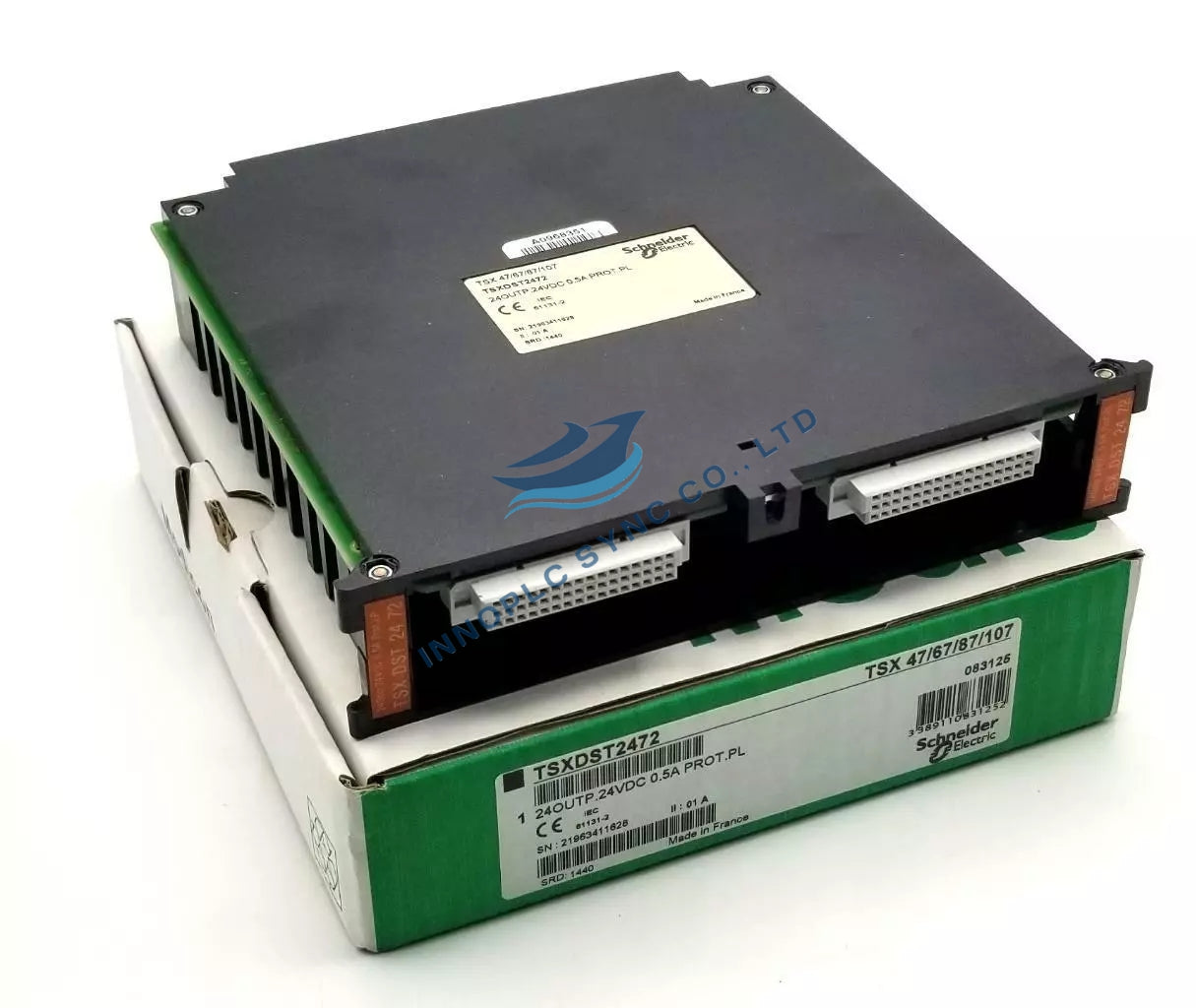

The Schneider TSXDST2472 is a discrete output module from the Modicon Premium Automation Platform, designed to provide 24 solid-state outputs for industrial automation control.

Features

Solid-state outputs for reliability
High-density output configuration
Compatible with Premium PLC systems

Technical Specifications

Output

Type: Solid-state DC outputs
Number of outputs: 24
Voltage: 24 V DC
Output current: 0.5 A per point
Total current: 12 A per module

Electrical

Response time: 1.2 ms (off to on), 1.2 ms (on to off)
Leakage current: 1 mA at 24 V
Voltage drop: 1 V max

Compatibility

Platform: Modicon Premium PLCs
Connection: Screw terminal block

Physical

Width: 35.5 mm
Height: 141 mm
Depth: 125 mm
Weight: 0.4 kg

Environmental

Operating temperature: 0…60 °C
Storage temperature: -25…70 °C
Humidity: 10…95% (no condensation)
Altitude: 0…2000 m

Durability

Vibration resistance: 1 gn at 13…150 Hz
Shock resistance: 15 gn for 11 ms
Electrostatic discharge: 4 kV contact, 8 kV air
Electromagnetic fields: 10 V/m at 80…1000 MHz
