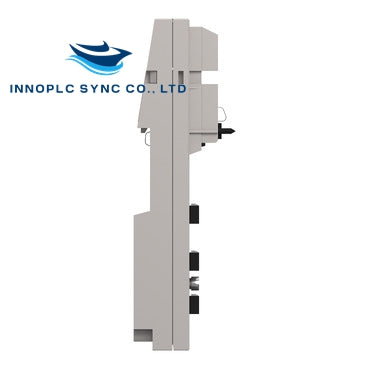

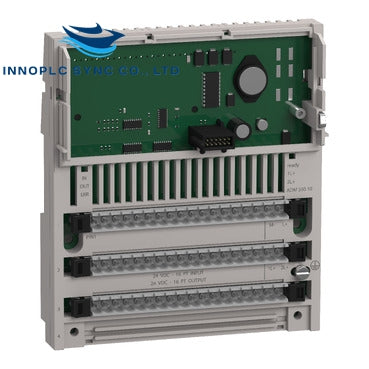

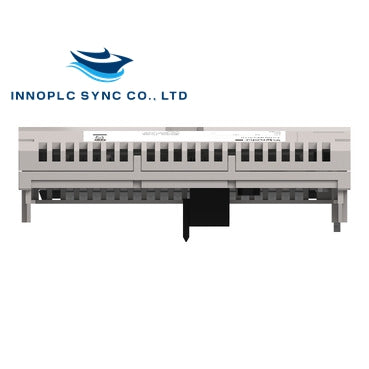

170ADM35010 | SCHNEIDER | discrete I/O module Modicon Momentum

SKU: 170ADM35010

Manufacturer: SCHNEIDER
Product No.: 170ADM35010
Condition：In stock
Product Type: Discrete I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

DESCRIPTION

Discrete I/O Module Specifications

Product Overview:
This module is part of the Modicon Momentum range, offering controllers and IP20 monoblock I/Os for distributed control architecture. It features 1 group of 16 inputs and 2 groups of 8 solid-state outputs with sink (positive) discrete logic. Designed for use in infrastructures, energy, material handling, and simple machine control, it is certified by CE, CSA, and UL.

Main Specifications
- Range of Product: Modicon Momentum Automation Platform
- Product Type: Discrete Solid State I/O Base DC
- Group of Channels:
  - 2 groups of 8 outputs
  - 1 group of 16 inputs
- Discrete Input Number: 16 (IEC 1131-2 Type 1)
- Discrete Input Logic: Positive
- Discrete Input Voltage: 24 V DC
- Discrete Output Number: 16
- Discrete Output Type: Solid State Switch
- Discrete Output Voltage: ≤ 30 V DC, 24 V DC
- Discrete Output Logic: Positive
- Protective Treatment: TC
Electrical Specifications
- Rated Supply Voltage: 24 V DC
- Input Voltage Limits: -3...30 V DC
- Voltage State 0 Guaranteed: -3...5 V
- Voltage State 1 Guaranteed: 11...30 V
- Input Resistance: 4 kΩ
- Discrete Output Current:
  - 4 A per group
  - 8 A per module
  - 0.5 A per point
- Maximum Leakage Current: 1 mA at 24 V (output circuit)
- Peak Output Current: 5 A
- Maximum Voltage Drop: <0.5 V at 0.5 A (state 1 output circuit)
- Fault Type: Overload on output
Response Times
- Output Response Time:
  - < 0.1 ms (state 0 to state 1)
  - < 0.1 ms (state 1 to state 0)
- Input Response Time:
  - 2.2 ms (state 0 to state 1)
  - 3.3 ms (state 1 to state 0)
Isolation and Power
- Isolation Between Channels and Bus: 500 V AC
- Power Dissipation: 6 W (≤ 8 W)
Marking and Signaling
- Marking: CE
- Local Signaling: 16 LEDs for channel status
Dimensions and Weight
- Dimensions:
  - Width: 125 mm
  - Depth: 47.5 mm
  - Height: 141.5 mm
- Net Weight: 0.2 kg
- Current Consumption: 250 mA at 24 V DC
