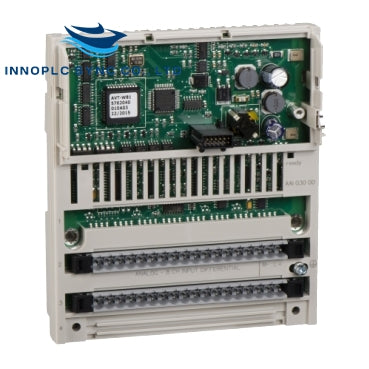

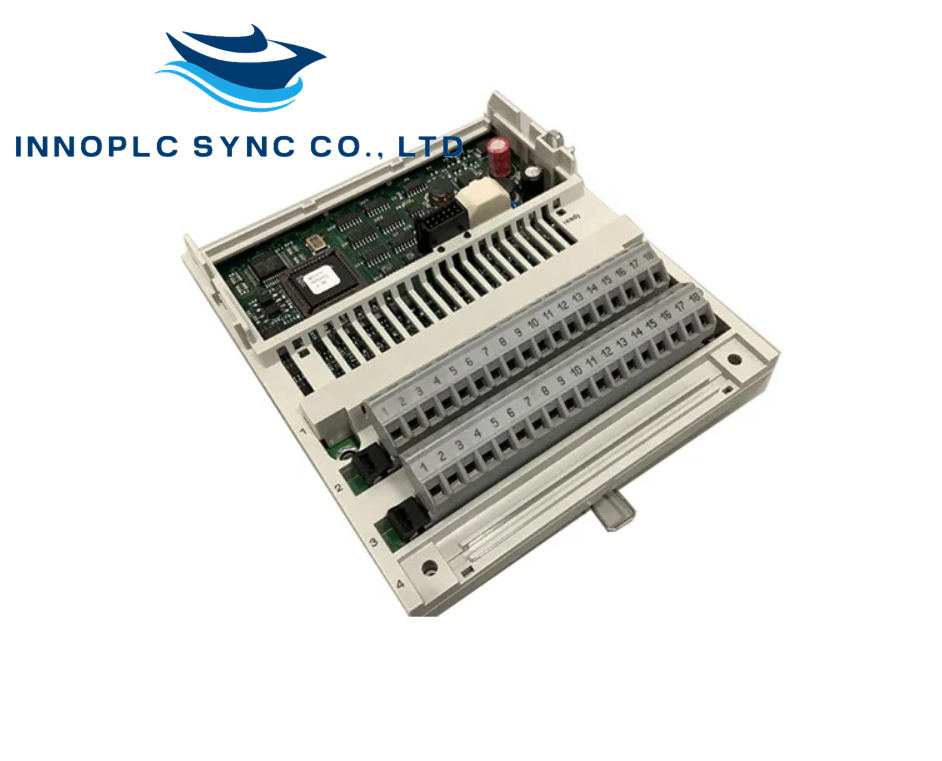

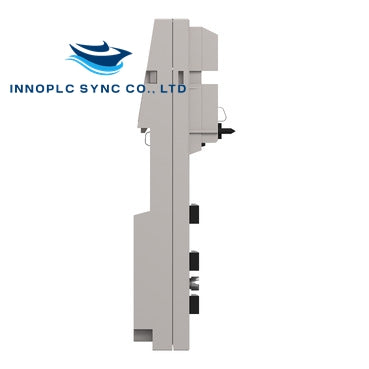

170AAI52040 | SCHNEIDER | Analog Input Base Module

SKU: 170AAI52040

Manufacturer: SCHNEIDER
Product No.: 170AAI52040
Condition：In stock
Product Type: Analog Input Base Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

DESCRIPTION

Analog Input Base Module Specifications

Product Overview:
This input base is part of the Modicon Momentum range, designed for distributed control architecture. It features 4 differential analog inputs with a full 16-bit signed resolution, suitable for applications in infrastructures, energy, material handling, and simple machine control. This module is certified by CE, FM Class 1 Division 2, CSA, and UL, and is suitable for wall mounting.

Main Specifications
- Range of Product: Modicon Momentum Automation Platform
- Product Type: Analog Input Base
- Analog Input Number: 4
- Analog Input Type: Differential
- Analog Input Ranges:
  - ±100 mV (15 bits + sign) > 10,000 kΩ
  - ±25 mV (15 bits + sign) > 10,000 kΩ
- Thermocouple Types Supported: E, S, K, N, B, R, J, T
Complementary Specifications
- Data Format: Full 16 bits signed
  - Update Time: 500 ms
Isolation and Protection
- Isolation Between Channels: 400 V DC
- Isolation Between Channels and Ground: 500 V AC for 1 minute
- Isolation Between Supply and Ground: 500 V for 1 minute
- Permissible Common Mode Voltage:
  - 100 V DC (between channels to ground)
  - 115 V AC (single or three phases between channels)
  - 200 V DC (between channels)
  - 250 V AC (between channels to ground)
- Common Mode Rejection:
  - 120 dB DC (between channels)
  - 130 dB 50 Hz AC (between channels)
  - 135 dB DC (between channels to ground)
  - 140 dB 60 Hz AC (between channels)
  - 145 dB 50 Hz AC (between channels to ground)
  - 155 dB 60 Hz AC (between channels to ground)
- Serial Mode Rejection:
  - 35 dB 50 Hz AC
  - 45 dB 60 Hz AC
- External Power Requirement: ±30 V DC
- Maximum Power Dissipation: 5.5 W
- Reverse Polarity Protection: Internal
- Protection Type: Internal 2 A slow-blow
- Associated Fuse Rating: 500 mA, fast blow
Terminals and Connections
- Marking: CE
- Local Signaling: 4 LEDs for channel status
- Electrical Connection: 2 connectors for removable terminal blocks
- Current Consumption: 305 mA at 24 V DC
Dimensions and Weight
- Depth: 47.5 mm
- Height: 125 mm
- Width: 141.5 mm
- Net Weight: 0.215 kg
Environmental Specifications
- Product Certifications: FM Class 1 Division 2, CSA, UL
- Protective Treatment: TC
- Resistance to Electrostatic Discharge:
  - 4 kV contact (IEC 801-2)
  - 8 kV on air (IEC 801-2)
- Resistance to Electromagnetic Fields: 10 V/m (80...1000 MHz, IEC 801-3)
- Ambient Air Temperature for Operation: 0…60 °C
- Ambient Air Temperature for Storage: -40…85 °C
- Relative Humidity: 95% without condensation
- Operating Altitude: ≤ 5000 m
Packaging Information
- Unit Type of Package: PCE
- Number of Units in Package: 1
- Package Dimensions:
  - Height: 5.5 cm
  - Width: 18.0 cm
  - Length: 26.0 cm
- Package Weight: 380.0 g

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
