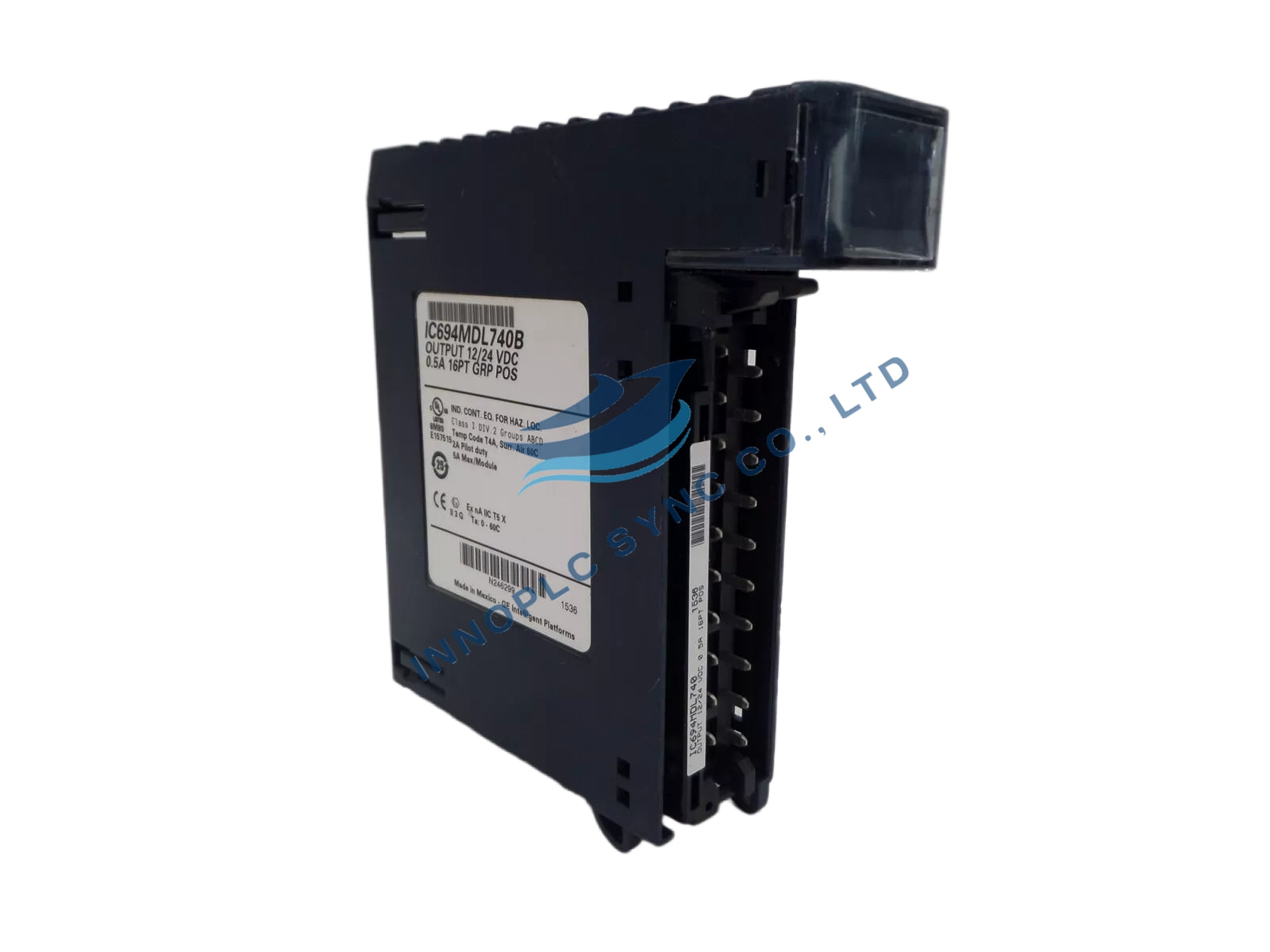

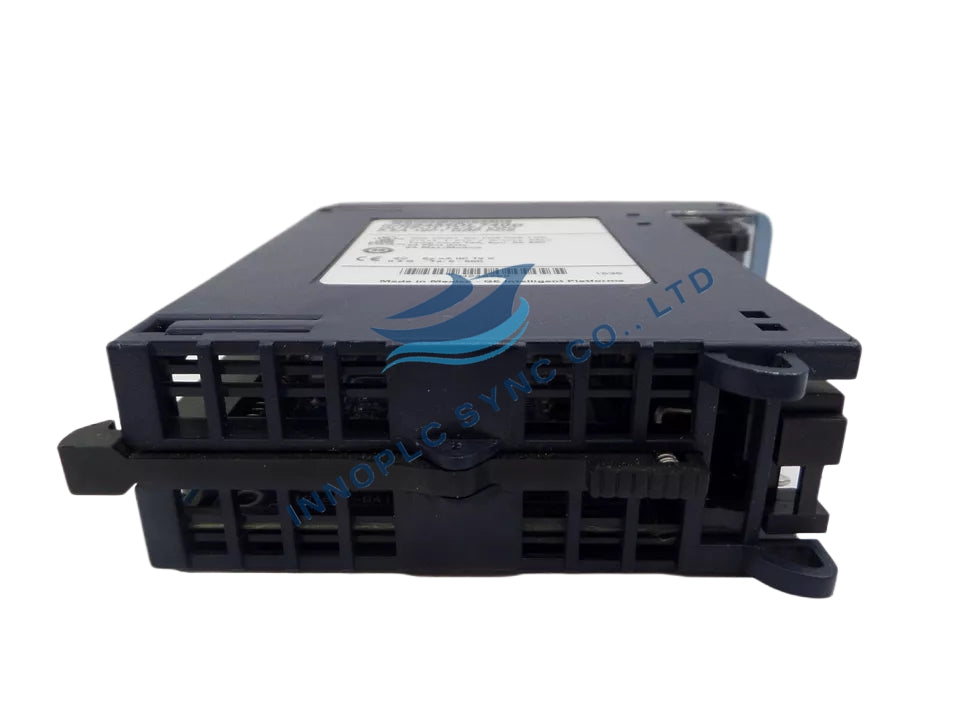

GE Fanuc|IC694MDL740|Output Module

SKU: IC694MDL740

Manufacturer: GE Fanuc
Product No.: IC694MDL740
Condition：In stock
Product Type: Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

GE Fanuc IC694MDL740 16-point, 12/24 VDC, 0.5 Amp, positive logic output module from the GE Fanuc RX3i Series.

Features

Provides 16 output points in 2 groups of 8.
Features positive logic with LED status indicators for each output.

Technical Specifications

Output points: 16, split into 2 groups of 8.
Operating voltage: 12 to 24 VDC.
Output current: 0.5 Amps per point.
Backplane power: 5 VDC, 110 mA from PLC backplane.
Isolation voltage: 250 VAC continuous; 1500 VAC for 1 minute.
On response time: 2 ms maximum.
Off response time: 2 ms maximum.
Output voltage drop: 1.2 V maximum.
Load current: 10 mA minimum per point.
Compatibility: Motor starters, solenoids, indicators.
