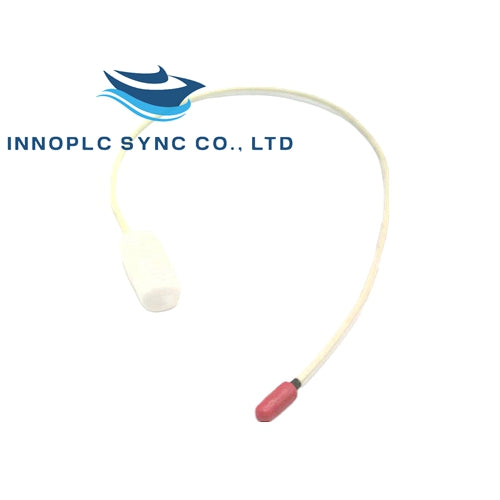

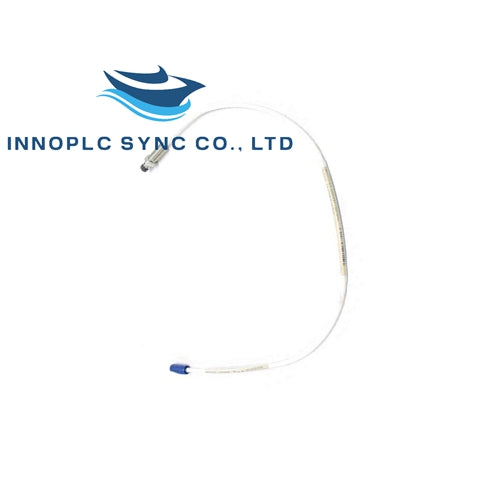

Bently Nevada | 21508-02-12-05-02 Probe Proximity Vibration

SKU: 21508-02-12-05-02

Manufacturer: BENTLY NEVADA
Product No.: 21508-02-12-05-02
Condition：In stock
Product Type: Probe Proximity Vibration
Product Origin: USA
Payment:T/T, Western Union
Weight: 590g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Bently Nevada 21508-02-12-05-02 is a Probe Proximity Vibration sensor developed for non-contact displacement measurement.

Features

General Use: Accurate, non-contact displacement measurement
Applications: Shaft position and vibration measurements on rotating and reciprocating machinery
Compatibility: Suitable for various machine types, including gas and steam turbines, compressors, pumps, centrifuges, electric motors, and generators
Measuring Range: 80 mil (2 mm), API 670 compliant
Configurations:
- Model Type: Reverse Mount Probe
- Cable Length: 0.5 meter (20 inches)
- Connector: Miniature male coaxial connector

Technical Specifications

Part Number: 21508-02-12-05-02
Manufacturer: Bently Nevada
Product Type: Probe Proximity Vibration

Characteristics

Frequency Response: 0 Hz (DC) to 10 kHz
Measurement Type: Non-contacting, gap-to-voltage transducer systems
Measurement Capabilities: Measures static and dynamic distances

Attributes

Input Power: -175 VDC to -26 VDC at 12 mA maximum consumption
Output Scale Factor: 200 mV/mil (7.87 V/mm), with calibration accuracy of ±4%
Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line
Frequency Response: 0 to 10 kHz (0 to 600,000 cpm), -5% at 10 kHz
Calibrated Range: 80 mils (2.0 mm), starting approximately 30 mil (0.25 mm) from probe face
Temperature Sensitivity: Typically -3% change in scale factor at +150°F (+65°C) at 50 mil gap (1.27 mm)

Environmental Limits

Operating Temperature: -30°F to +350°F (-34°C to +177°C)
Relative Humidity: Up to 95%, non-condensing
Corrosion Resistance (8 mm probes only): Resistant to contact with air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK (methyl ethyl ketone), or DMF (Dimethylformamide)

Weight

System Weight: 1.3 lbs (0.59 kg)
