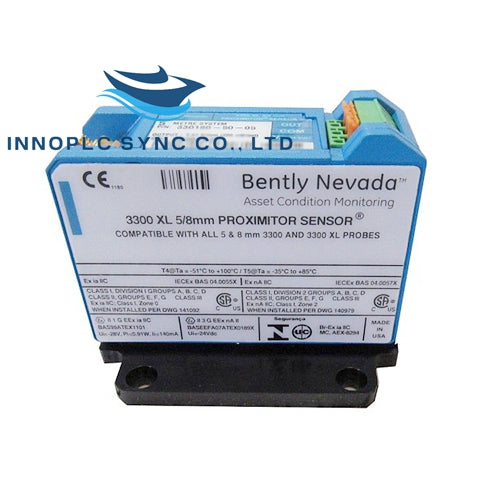

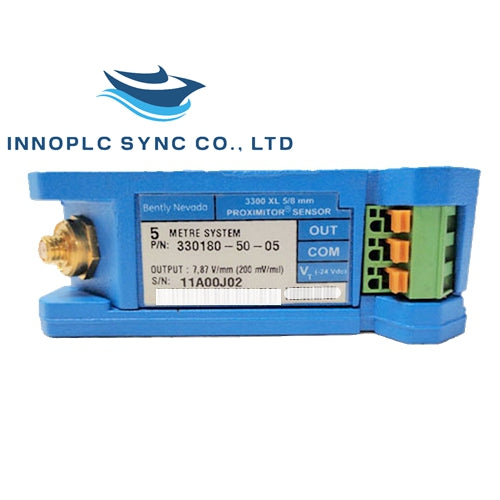

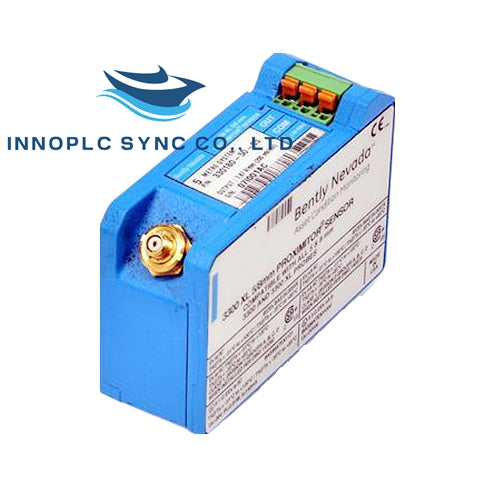

Bently Nevada 330180-50-05 3300 XL Proximitor Sensor

SKU: 330180-50-05

Manufacturer: BENTLY NEVADA
Product No.: 330180-50-05
Condition：In stock
Product Type: Proximitor Sensor
Product Origin: USA
Payment:T/T, Western Union
Weight: 323g
Shipping port: Xiamen
Warranty: 12 months

Overview

The Bently Nevada 330180-50-05 is a 3300 XL Proximitor Sensor designed for precise measurement in industrial applications. It accepts various proximity probes and ensures reliable data transmission over specified lengths.

Technical Specifications

Manufacturer: Bently Nevada
Product No.: 330180-50-05
Product Type: 3300 XL Proximitor Sensor
Total Length and Mounting Option:
- 50 = 5.0 meters (16.4 feet) system length, panel mount
Agency Approval Option:
- 05 = CSA, ATEX, IECEx approvals
Proximitor Sensor Input:
- Accepts one non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm Proximity Probe and extension cable
Power:
- Requires -17.5 VDC to -26 VDC without barriers at 12 mA maximum consumption
- -23 VDC to -26 VDC with barriers
- Operation at a more positive voltage than -23.5 VDC can reduce linear range
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
Proximitor Sensor Material: A308 aluminum
Connector Material: Gold-plated brass or gold-plated beryllium copper
System Length: 5 or 9 meters (including extension cable) or 1 meter (probe only)
Dimensions (HxWxD), approx.: 6.35 cm x 6.1 cm x 8.13 cm
Weight: 0.323 kg

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
