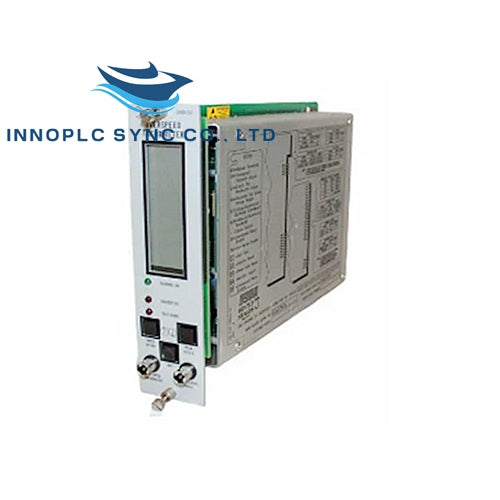

3300/53-03-02-00-60-20-00-00-00 | Bently Nevada Overspeed Protection System

SKU: 3300/53-03-02-00-60-20-00-00-00

Manufacturer: BENTLY NEVADA
Product No.: 3300/53-03-02-00-60-20-00-00-00
Condition：In stock
Product Type: Overspeed Protection System
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Overview

3300/53-03-02-00-60-20-00-00-00 is a Vibration Sensor Module by Bently Nevada, designed for use in machinery protection systems to monitor and safeguard rotating equipment.

Technical Specifications

Manufacturer: Bently Nevada
Product No.: 3300/53-03-02-00-60-20-00-00-00
Product Type: Vibration Sensor Module
Compatibility: 3300 Machinery Protection System
Input Signal: Proximity probe transducer or magnetic pickup
Input Range: ±10.0 V to -24.0 V
Input Impedance: 20 kΩ
Power Consumption: 8.0 W (typical)
Output: Buffered transducer output
Output Impedance: 550 Ω
Transducer Power Supply: -24 Vdc, 40 mA max
Recorder Output: +4 to +20 mA (proportional to full-scale range)
Resolution: 0.3662 µA per bit
Update Rate: Approximately 100 ms
Relays: Single-pole, double-throw (SPDT) relays

Environmental Conditions

Environmental Sealing: Epoxy sealed
Arc Suppressers: 250 Vrms, standard
Contact Ratings: Max switched power: 120 W (dc), 600 VA (ac)

Performance

Frequency Response: Speed input: 1 to 255 events per revolution
Max Input Frequency: 20 kHz

Dimensions and Weight

Dimensions: 100 mm x 80 mm x 35 mm (3.9 in x 3.1 in x 1.4 in)
Weight: 0.5 kg (1.1 lbs)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
