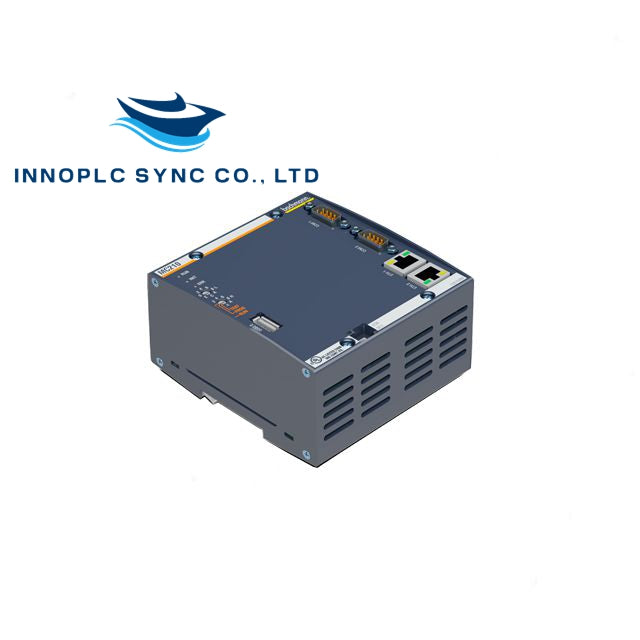

MC205CC | Bachmann Processor Module

SKU: MC205CC

Manufacturer: Bachmann
Product No.: MC205CC
Condition：In stock
Product Type: Processor Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Bachmann MC205CC
The Bachmann MC205CC is a high-performance CPU module designed for industrial automation applications, providing a robust and versatile platform for controlling various processes and machines.

Technical Specifications

Processor and Memory

CPU: 600 MHz ATOM E620
I/O Bus: Process image controller
CFast (Mass Storage): 1 x integrated (> 8 GB, accessible from the side)
RAM: 1 GB DRAM DDR2
nvRAM-0 (Data Memory): 512 kB
Internal FLASH (Program Memory): 64 MB (40 MB free for application program)

Interfaces

Serial: 1 x RS232 + 1 x RS232/422/485 (SW configurable)
Ethernet: 2 x 10/100/1000 Base-T with IEEE1588
USB Host: 1 x USB 2.0
Service USB Interface: 1 x USB device

Additional Features

Watchdog: Yes
Synchronizing Pulse: For I/O bus, fieldbuses SERCOS and CAN, Ethernet
Real-time Clock: With battery
Status Indication: Via 3 LEDs
CPU ID: Selectable with rotary hexadecimal switches
Operating System: VxWorks with Bachmann system extensions on internal FLASH

Approvals and Certificates

General: CE, UL/cUL, CCC
Marine: GL/DNV, LR, ABS, BV

Environmental Conditions

Operating Temperature: -30 to +60 °C, fan-free
Relative Humidity (Operation): 5 to 95 % (without condensation), 5 to 95 % (with condensation)
Storage Temperature: -40 to +85 °C
Relative Humidity (Storage): 5 to 95 % (without condensation), 5 to 95 % (with condensation)

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
