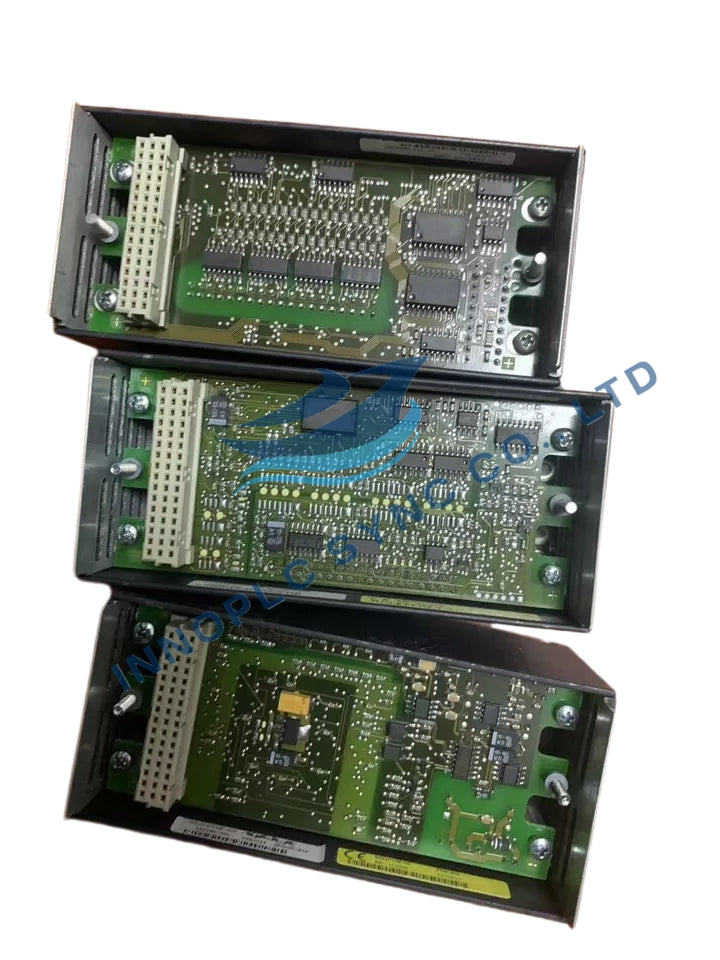

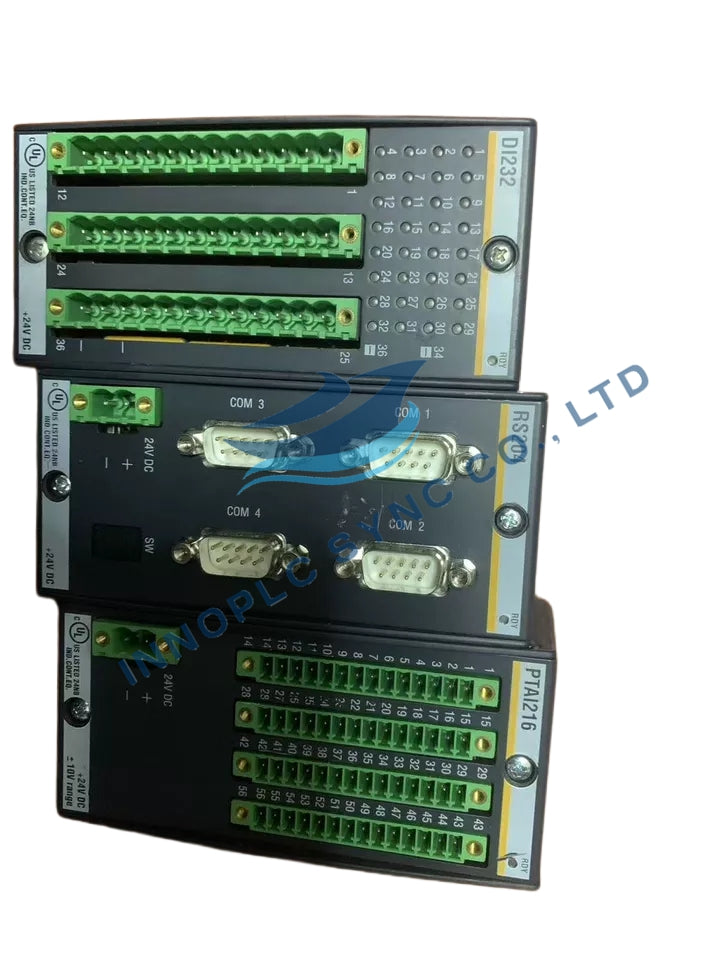

Bachmann |PTAI216| Fiber Optic Analog Input Module

SKU: PTAI216

Manufacturer: Bachmann
Product No.: PTAI216
Condition：In stock
Product Type: Fiber Optic Analog Input Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 990g
Shipping port: Xiamen
Warranty: 12 months

Description

The PTAI216 Fiber Optic Analog Input Module is produced by Bachmann electronic for use in industrial automation systems. It provides 16 channels of high-precision analog input, specifically designed for applications requiring long-distance communication and electrical isolation. The module uses fiber optic connections to ensure reliable data transmission over extended distances while maintaining signal integrity and minimizing electromagnetic interference.

Features

16 channels of ±10 V or 4-20 mA analog input
Fiber optic communication ensuring electrical isolation
High accuracy: 16-bit resolution
Fast sample rate: up to 10 kHz per channel
Galvanic isolation up to 500 V
Operating temperature: -30 to +60 °C
Storage temperature: -40 to +85 °C
Relative humidity: 5 to 95% non-condensing (operating), 5 to 95% with condensation (storage)
Certifications: CE, UL/cUL, CCC, marine certifications (GL/DNV, LR, ABS, BV)

Technical Specifications

Analog Inputs:
- Channels: 16
- Voltage range: ±10 V or 4-20 mA
- Accuracy: 16-bit resolution, 0.05% basic accuracy
- Sample rate: Up to 10 kHz per channel
- Input impedance:
  - Voltage input: ≥ 1 MΩ
  - Current input: ≤ 250 Ω
- Galvanic isolation from system: 500 V
- Common mode rejection ratio (CMRR): > 100 dB at 50/60 Hz
- Normal mode rejection ratio (NMRR): > 70 dB at 50/60 Hz
Fiber Optic Communication:
- Transmission medium: Plastic Optical Fiber (POF) or Hard Cladded Silica (HCS)
- Maximum distance:
  - POF: up to 40 m
  - HCS: up to 200 m
- Interface type: Harting PushPull® connector or LC patch cable
Power Supply:
- Voltage range: 24 VDC (18 to 34 V)
- Current consumption:
  - +5 V: 95 mA
  - +15 V: 250 mA
  - -15 V: 200 mA
Certifications:
- General: CE, UL/cUL, CCC
- Marine: GL/DNV, LR, ABS, BV
Operating Conditions:
- Operating temperature: -30 to +60 °C
- Storage temperature: -40 to +85 °C
- Relative humidity operation: 5 to 95% non-condensing
- Relative humidity storage: 5 to 95% with condensation
