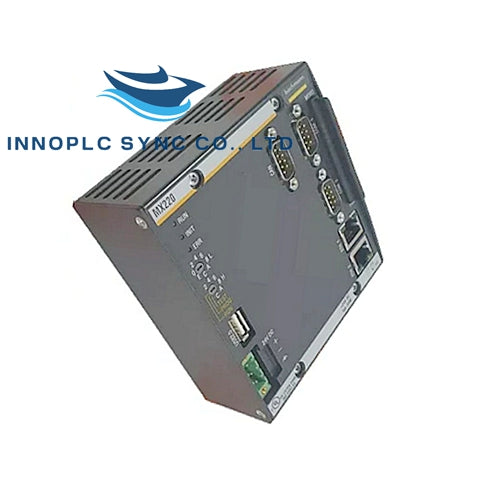

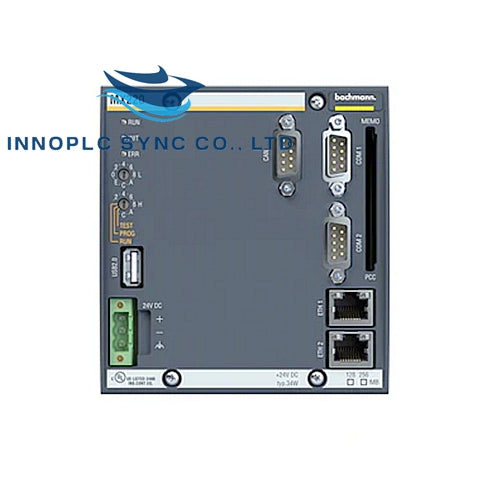

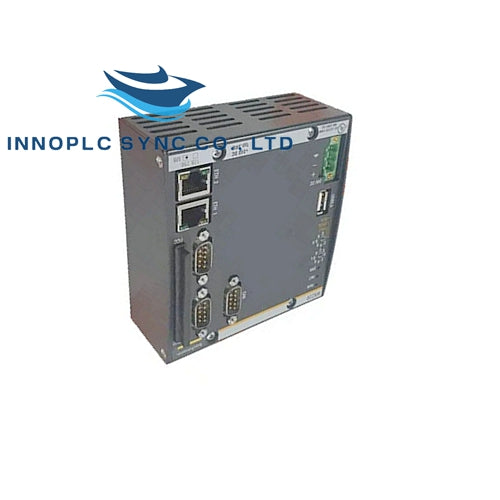

Bachmann | MX220 | CPU Module

SKU: MX220

Manufacturer: Bachmann
Product No.: MX220
Condition：In stock
Product Type: CPU Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 660g
Shipping port: Xiamen
Warranty: 12 months

Overview

The MX220 CPU module operates at a clock frequency of 433 MHz and features a single-core processor. It includes 256 MB of DRAM and 512 kB of non-volatile RAM. Additionally, it has 64 MB of file flash memory, supporting various interfaces such as Ethernet, CAN, RS232, and USB. This module ensures reliable performance with a power supply of 17 W and offers a Compact Flash slot for removable storage.

Features

Processor Architecture: x86 / AMD LX
Clock Frequency: 433 MHz
Memory: 256 MB RAM, 512 kB nvRAM, 64 MB Flash
Interfaces:
- 2x Ethernet 100 Base-Tx
- 1x CAN/CANopen
- 2x RS232
- 1x USB 2.0
I/O Supply: 17 W
Compact Flash Slot: Yes

Technical Specifications

Processor:
- Architecture: x86 / AMD LX
- Clock Frequency: 433 MHz
- Cores: 1
Memory:
- Main Memory: 256 MB
- Retentive Memory: 512 kB NVRAM
- Mass Storage: 64 MB integrated, Compact Flash removable
I/O Subsystem:
- Backplane Interface: Bachmann M1
- Process Image Controller: Integrated
- Ethernet: 2x 10/100 Base-Tx (RJ45)
- Serial Ports: 1x RS232, 1x RS422/RS485
- USB: 1x USB 2.0
- CAN: 1x CAN/CANopen
Power Supply:
- Voltage: 24 VDC (18 to 34 V)
- Rated Power Consumption: 9.5 W without I/O, 33.6 W with I/O
Environmental Conditions:
- Operating Temperature: -30 to +60 °C
- Storage Temperature: -40 to +85 °C
- Relative Humidity: 5 to 95 % without condensation
Electrical Safety:
- Protection Class: III
- Protection Type: IP20

Dimensions & Weight

Dimensions:
- Width: 110 mm
- Height: 119 mm
- Depth: 61 mm
Weight: Approx. 660 g
