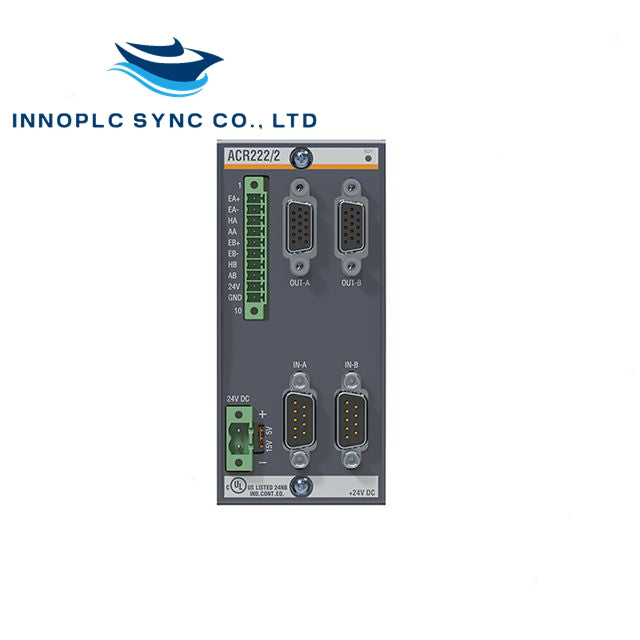

ACR222/2 | Bachmann Axis Controller Module

SKU: ACR222/2

Manufacturer: Bachmann
Product No.: ACR222/2
Condition：In stock
Product Type: Axis Controller Module
Product Origin: Austria
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

Description

Overview

Function: Controls stepping motor output stages with high-speed operation and robust performance.
Flexibility: Offers various configuration options to meet diverse application needs.

Technical Specifications

Encoder Interface

Counter Resolution: 24-bit
Counter Modes: 1-, 2-, or 4-edge evaluation
Encoder Frequency: Up to 1 MHz
Inputs: HEDL (HP/AVAGO interface) / RS422
Galvanic Isolation: 500 V from the system
Encoder Power Supply: Selectable +5 V or +15 V via jumper

Motor Controller Interface

Stepper Frequency: Maximum of 150 kHz
Number of Steps: Range from 1 to 16,777,215
Acceleration Types: Linear, sin², or parabolic
Acceleration/Braking Time: Adjustable from 8 ms to 131 s
Output Voltage:
- Low: 0 to 2 V
- High: 3 to 34 V (Imax = 10 mA)
Input Voltage:
- Low: 0 to 3 V
- High: 4 to 30 V
Voltage Range: 18 to 34 VDC
Current Consumption: Typically 400 mA at 24 VDC plus the sum of the current consumption of connected encoders and sensors
Galvanic Isolation: 500 V from the system
Reverse Polarity Protection: Yes

Approvals / Certificates

Certifications: CE, cULus, CCC

Ambient Conditions

Operating Temperature: 0 to +60 °C
Relative Humidity (Operation): 5 to 95 % (non-condensing)
Storage Temperature: -40 to +85 °C
Relative Humidity (Storage): 5 to 95 % (non-condensing)
Pollution Degree: 2 (non-condensing, according to IEC 60664-1)

Dimensions

Size: 2.5" x 4.7" x 2.5" (6.3 cm x 11.9 cm x 6.3 cm)
Weight: 0 lbs 9.8 oz (0.3 kg)
