Allen-Bradley | 1785-KE | Communication Interface Module

SKU: 1785-KE

Manufacturer: Allen-Bradley
Product No.: 1785-KE
Condition：In stock
Product Type: Communication Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Overview

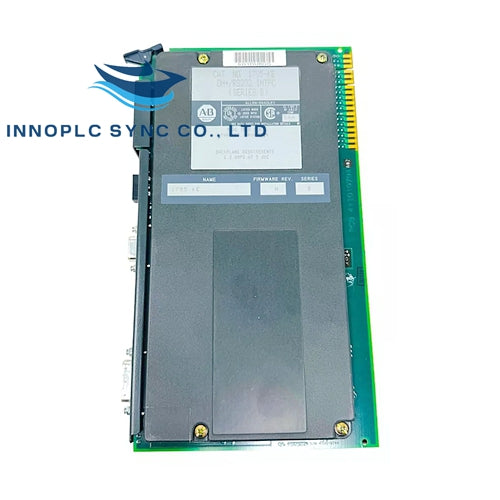

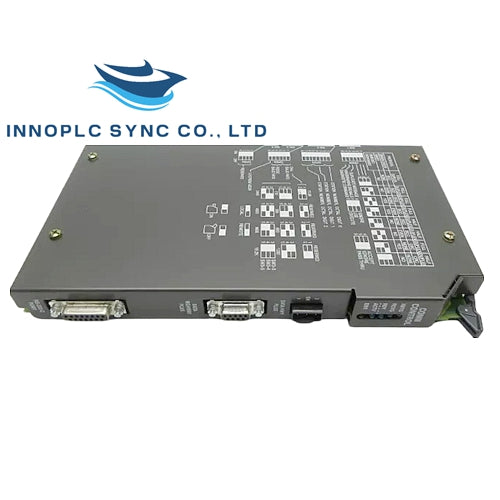

The 1785-KE is a Data Highway Plus communication controller interface module designed to connect RS232 devices to the DH+ network. It features one DH+ port and one RS232 interface and mounts in a 1771 chassis, drawing an input current of 1.2 Ampere at 5VDC.

Features

Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1785-KE
Module Type: Communication Interface Module
Compatible Controllers: PLC2, PLC3, PLC4, PLC5 controllers
Built-in Ports: One (1) Data Highway Plus; One (1) RS232-C
Max Modules per System: 4

Technical Specifications

DH+ Transmission Speed: Up to 57,600 bps
RS232-C Transmission Speed: 110 to 19,200 bps
Power Requirement: 1.2 Amperes at 5 Volts DC
Operating Temperature: 0-60 °C
Storage Temperature: -40 to 85 °C
Relative Humidity: 5-95% without condensation
Typical AC Signal Delay (Off): 29 (+/- 8) ms
Typical DC Signal Delay (Off): 30 (+/- 7) ms

Dimensions & Weight

Dimensions: 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm)
Weight: 0.3 lbs (0.1 kg)
Coating: Conformal Coat
Wiring Arm: 1771-WN

Additional Information

Connection Types: Supports full duplex and half duplex configurations
Cabling: Requires 1770-CD for DH+ and 1770-CG for RS232 connections
Environmental Requirements: Ensure proper conditions are maintained to avoid damage.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
