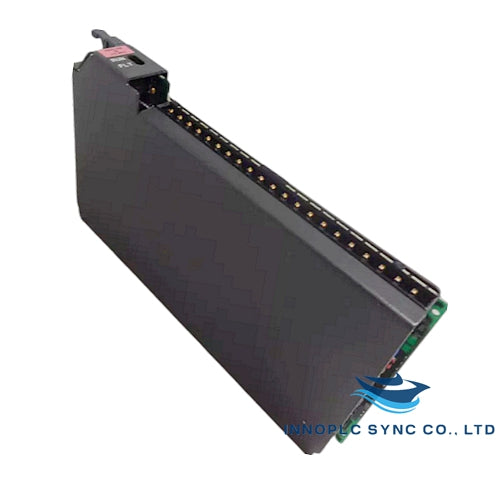

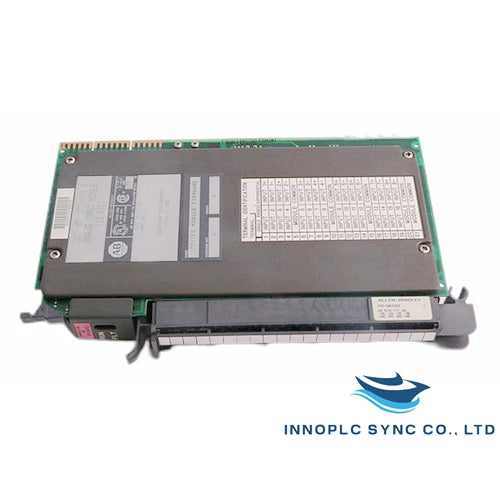

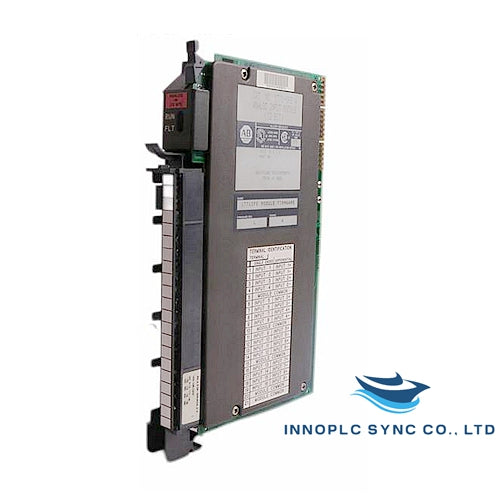

Allen-Bradley 1771-IFE | PLC5 Analog Input Module

SKU: 1771-IFE

Manufacturer: Allen-Bradley
Product No.: 1771-IFE
Condition：In stock
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 730g
Shipping port: Xiamen
Warranty: 12 months

Description

The 1771-IFE is an Allen-Bradley analog input module for the PLC5 system. It supports 16 single-ended or 8 differential input channels with configurable voltage and current signal ranges.

General Information

Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1771-IFE
Module Type: Analog Input
Chassis Compatibility: Any 1771 I/O chassis
Weight: 1.6 lbs (0.73 kg)

Specifications

Channels: 16 Single-Ended or 8 Differential
Channel Update Time:
- 8 channels: 18 ms
- 16 channels: 36 ms
Resolution: 12-bit binary (12 bits plus sign on bipolar ranges)
Data Format: Natural Binary or BCD Scaling to +/- 9999
Accuracy: 0.1% of full scale at 25°C
Voltage Range: -10 to +10 V DC
Current Range: -20 to +20 mA
Backplane Current: 750 mA at 5V DC
Power Dissipation: Max 2.5 W
Thermal Dissipation: 8.52 BTU/hr

Environmental Conditions

Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Humidity: 5% to 95% non-condensing

Wiring and Mounting

Wiring Arm: 1771-WG
Mounting: Rack-mountable, 1-slot width
Connector Keying: Pins 10-12 (lower connector), Pins 24-26 (upper connector)

Features

Fault Indicators: Green RUN, Red FAULT
Signal Delay:
- Typical DC Signal (On): 10 ms
- Typical DC Signal (Off): 20 ms
- Typical AC Signal (Off): 24 ms
Optoelectrical Isolation: Protects against electrical transients
Input Filtering: Reduces electrical noise

Applications

The 1771-IFE module is ideal for measuring process variables such as:

Pressure
Temperature
Flow
Level
Viscosity
pH
Vibration
