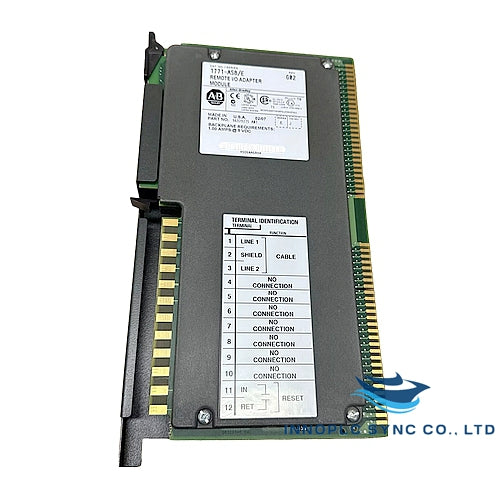

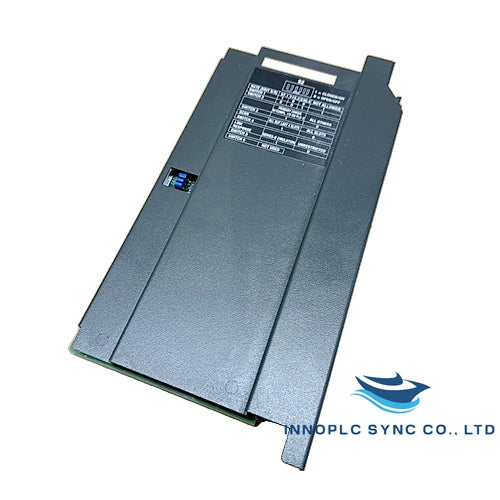

Allen-Bradley | 1771-ASB/E | Remote I/O (RIO) Adapter Hardware

SKU: 1771-ASB/E

Manufacturer: Allen-Bradley
Product No.: 1771-ASB/E
Condition：In stock
Product Type: RIO Adapter Hardware
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

Description

The 1771-ASB/E is a Remote I/O (RIO) adapter module designed for the PLC 5 system. It interfaces I/O modules with a Remote I/O scanner port, facilitating communication between the processor and I/O devices over a network. It supports data transmission rates of 57.6 Kbps, 115 Kbps, and 230 Kbps.

General Information

Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Part Number: 1771-ASB/E
Module Type: I/O Adapter Module
Product Family: SLC 500
Weight: 1.9 lbs (0.9 kg)

Specifications

Rate of Communication: 57.6 kbit/s, 115 kbit/s, 230 kbit/s
Backplane Current: 1.0 A at 5V DC
Number of Connections: 32
Mounting: In-chassis
Cable: Belden 9463
Dimensions: 3.5 x 6.5 x 2.0 inches (89 x 165 x 51 mm)
Power Dissipation: Max 5.2 W

Environmental Conditions

Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
Humidity: 5% to 95% non-condensing

Communication Details

Connector: Wiring Arm 1771-WB
Port: Remote I/O (RIO)
Noise Immunity: NEMA ICS 2-230

Diagnostic Features

Status Indicators:
- ACTIVE: Green LED (Normal Operation)
- ADAPTER FAULT: Red LED (Fault)
- I/O RACK FAULT: Red LED (Fault)

Installation and Configuration

Terminating Resistor: 82 Ohm or 150 Ohm
Chassis: Compatible with 4, 8, 12, 16, or 32-slot I/O chassis
Slot Position: Mount in the left-most slot of the 1771 chassis

Performance

Transmission Distance:
- 57.6 Kbps: Up to 10,000 ft (3,048 m)
- 230.4 Kbps: Up to 2,500 ft (762 m)
Data Transmission: Serial form to/from the I/O scanner; Parallel form for I/O modules
