Allen-Bradley|1756-PB75/A| Human Interface Module

SKU: 20-HIM-A3

Manufacturer: Allen-Bradley
Product No.: 20-HIM-A3
Condition：In stock
Product Type: Human Interface Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1g
Shipping port: Xiamen
Warranty: 12 months

Description

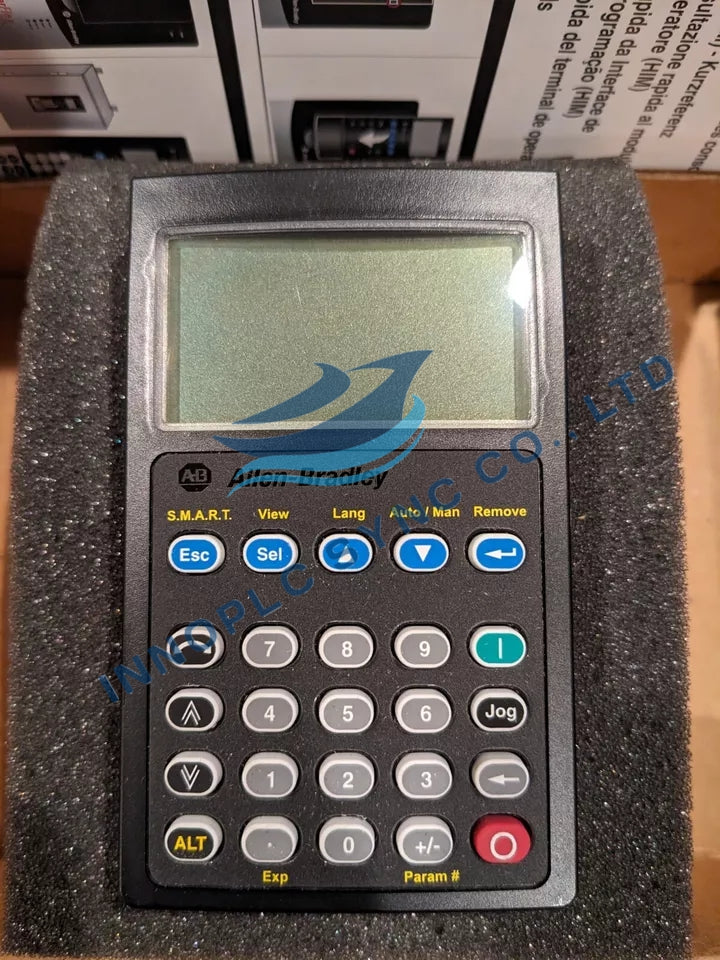

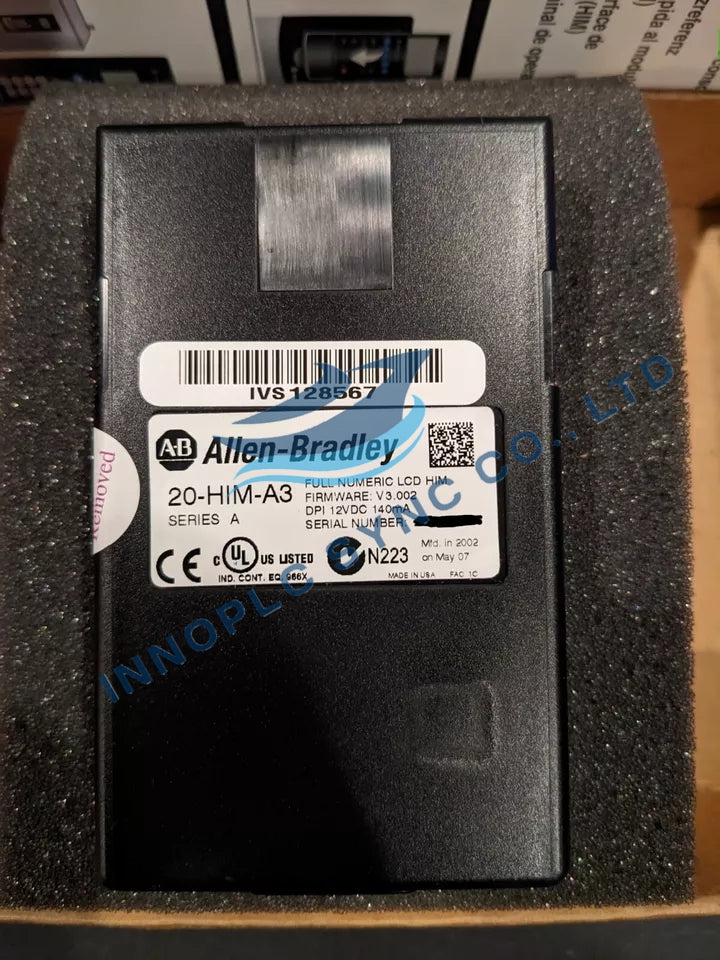

The Allen-Bradley 20-HIM-A3 is a Human Interface Module designed for PowerFlex 7-Class drives. It facilitates configuration, diagnostics, and monitoring of drive parameters through an intuitive interface.

Features

Smooth Reference Switching: Enables seamless transition between communicated and local speed references.
Enhanced Diagnostics: Provides detailed diagnostic information for troubleshooting.
Compatibility: Supports PowerFlex 700 and 700H drives with compatible firmware versions.

Technical Specifications

Operating Conditions

Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: Up to 95% non-condensing

Firmware Requirements

Minimum Firmware Version: v5.004 for HIM, v7.001 for PowerFlex 700, v5.001 for PowerFlex 700H

Communication Interfaces

USB/SSS Converter: Required for firmware updates and online connectivity via DriveExplorer or DriveExecutive.
Ethernet: Optional connection method for DriveExplorer Full.

Flash Update Procedure

Preparation: Ensure the drive is powered and stopped safely.
Firmware Files: Use ControlFLASH or HyperTerminal to upload files such as “20-HIM-BOOT_2_002_01.bin” and “20-HIM-APP_5_004_01.bin”.
Protocol: Utilize XMODEM for file transfer during flash update.

Order and Warranty Information

Terms of Purchase and Returns

Detailed guidelines on minimum order quantity, delivery times, payment options, warranty, and return policies.

We gladly accept bulk orders, with a minimum order quantity of just one unit.

Upon request, we can provide all necessary documents, including Certificates of Origin/Conformance and other required export paperwork.

We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% payable before shipment. For RMB transfers, please contact us if you have an agent in China.

All new and original items come with a standard one-year warranty. For extended warranty options, feel free to contact us for pricing details.

We prioritize your satisfaction. If you need to return an item, it must be done within 30 days of purchase. The product must be unused, unopened, and in its original packaging, including all accessories. Refunds will be processed within 5-7 business days of receiving the return. Please note, shipping and handling charges are non-refundable.
