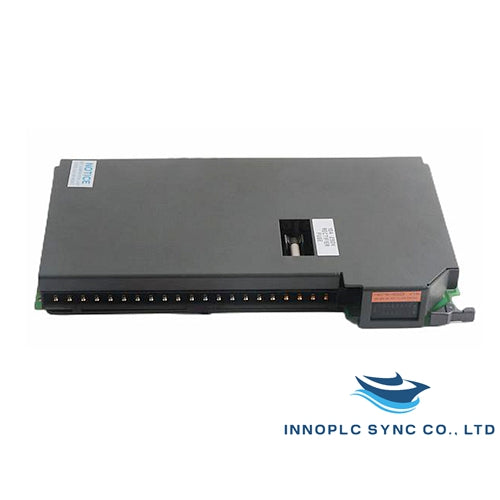

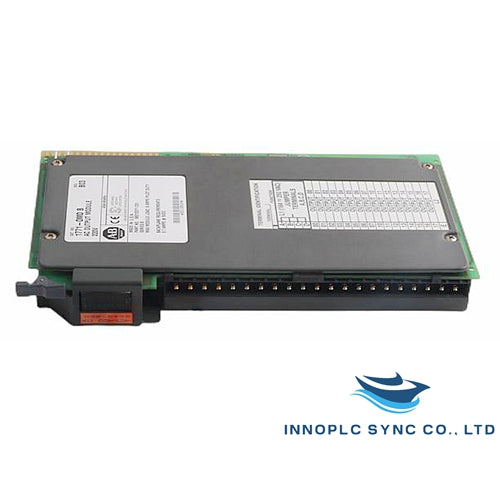

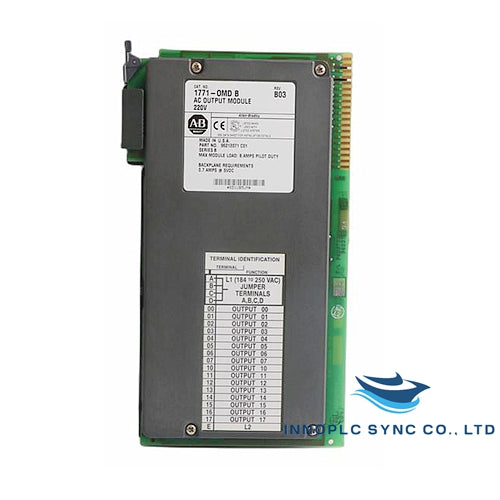

1771-OMD B | Allen-Bradley | PLC 5 Series Output Module

SKU: 1771-OMD/B

Manufacturer: Allen-Bradley
Product No.: 1771-OMD/B
Condition：In stock
Product Type: Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 630g
Shipping port: Xiamen
Warranty: 12 months

Description

The 1771-OMD B is a 16-channel digital AC output module from the Allen-Bradley PLC 5 series. It operates with a voltage range of 184-250V AC and offers a maximum output current of 2A per channel, with an overall maximum of 8A per module.

Specifications

Number of Outputs: 16
Operating Voltage: 184-250V AC
Output Current (per channel): 2A
Max Current (module): 8A
Surge Current:
- 25A per output (100ms, repeatable every 1s)
- 25A per module (100ms, repeatable every 1s)
Minimum Load Current: 10mA per output
Voltage Loss (On State): 1.5V at 2A
Leakage Current (Off State): 4mA
Power Dissipation:
- Minimum: 3.7W
- Maximum: 17.3W
Thermal Dissipation: 59 BTU/hr
Backplane Current: 700mA
Signal Delay (On to Off): 8.3-9.1ms at 60Hz
Signal Delay (Off to On): 10ms

Installation and Mounting

Wiring Arm: 1771-WH
Wiring Screw Torque: 7-9 inch-pounds
Fuse Type: 10A 250V rectifier fuse (1/4 x 1-1/4 inch) per output
Mounting: Rack-mountable

Environmental Parameters

Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Humidity Range: 5% to 95% (non-condensing)

Additional Features

Coating: Conformal coat
Compliance: UL and CSA standards for voltage isolation
Current Load: Minimum 10mA per output at 220V AC (60Hz)
