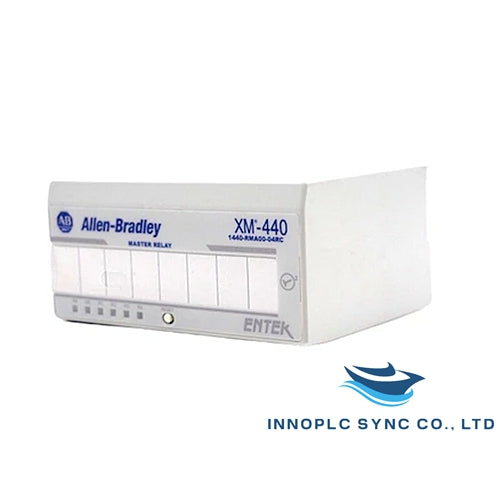

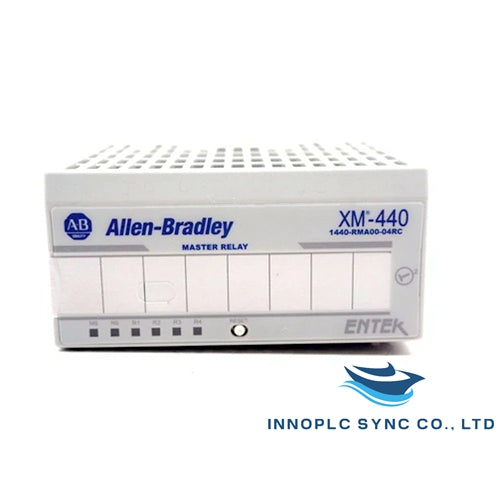

1440-RMA00-04RC | Allen-Bradley XM-440 Master Relay Module

SKU: 1440-RMA00-04RC

Manufacturer: Allen-Bradley
Product No.: 1440-RMA00-04RC
Condition：In stock
Product Type: Master Relay Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1250g
Shipping port: Xiamen
Warranty: 12 months

Overview

1440-RMA00-04RC is the Allen-Bradley XM-440 Master Relay Module designed for DeviceNet communication.

General Information

Part Number: 1440-RMA00-04RC
Manufacturer: Rockwell Automation
Brand: Allen-Bradley
Product Type: XM-440 Master Relay Module
Communication Protocol: DeviceNet
Supported Baud Rates: 125kb, 250kb, 500kb

Specifications

Relay Type: 4 relays, DPDT (2 Form C)
Relay Contacts: 250V AC, 50/60 Hz, 3A resistive
Failsafe: Normally energized or de-energized
Latching Options: Latching or Non-latching
Time Delay: 0-25.5 seconds, adjustable in 100ms increments
Reset: Local, remote, or digital reset command
Power Supply: 24V DC, 200mA max
Power Consumption: 3.4W (11.6 BTU/hr)
Heat Production: 3.4W (11.6 BTU/hr)
Module Size:
- Height: 97mm (3.8 in)
- Width: 94mm (3.7 in)
- Depth: 94mm (3.7 in)
Screw Torque: 7 lb-in (0.6 Nm)

Features

LED Indicators:
- Module Status (red/green)
- Network Status (red/green)
- Relay 1-4 Status (red)
Expansion: Up to 8 additional relays with XM-441 module
Communication:
- DeviceNet protocol
- RS-232 via mini-connector or terminal base unit
- Local configuration via Serial Configuration Utility

Environmental Conditions

Operating Temperature: -20°C to +65°C (-4°F to +149°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 95% non-condensing
Coating: Conformally coated PCBs

Mounting

Mounting: Attaches to XM-942 terminal base unit (Cat. No. 1440-TB-C)
